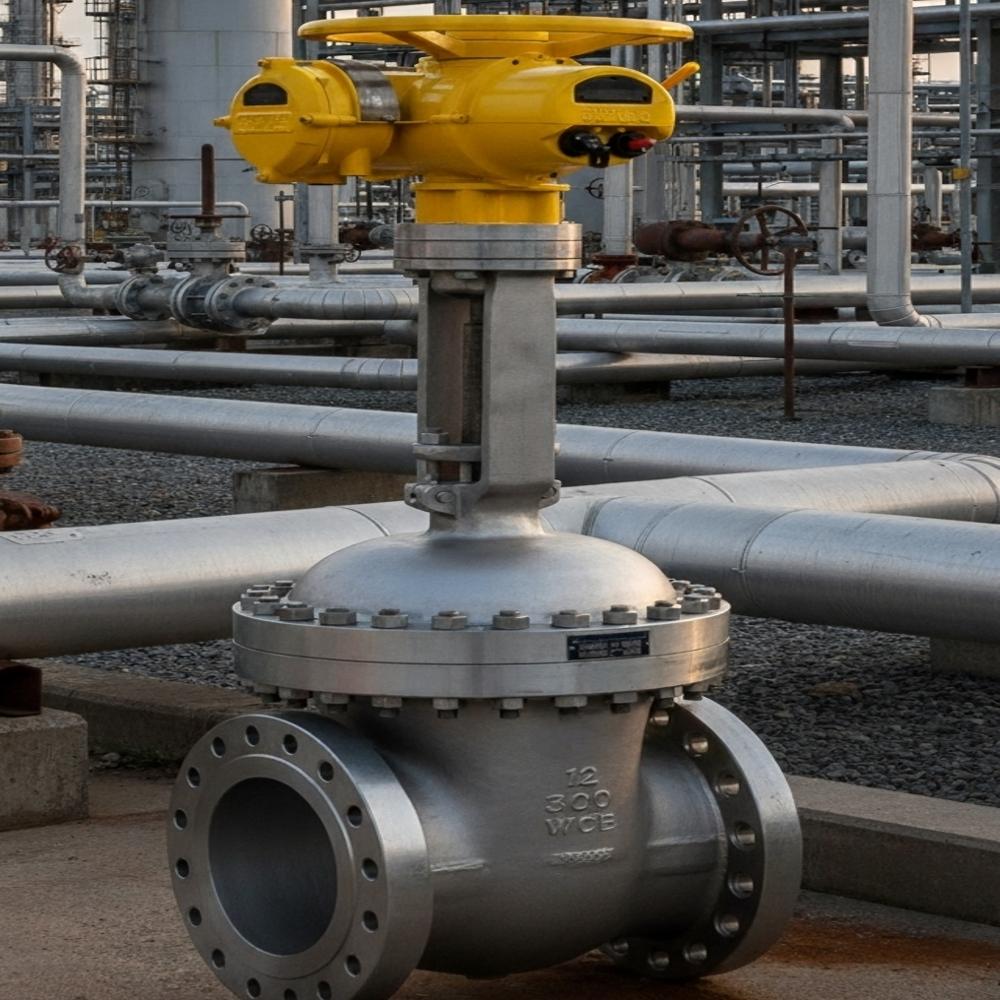

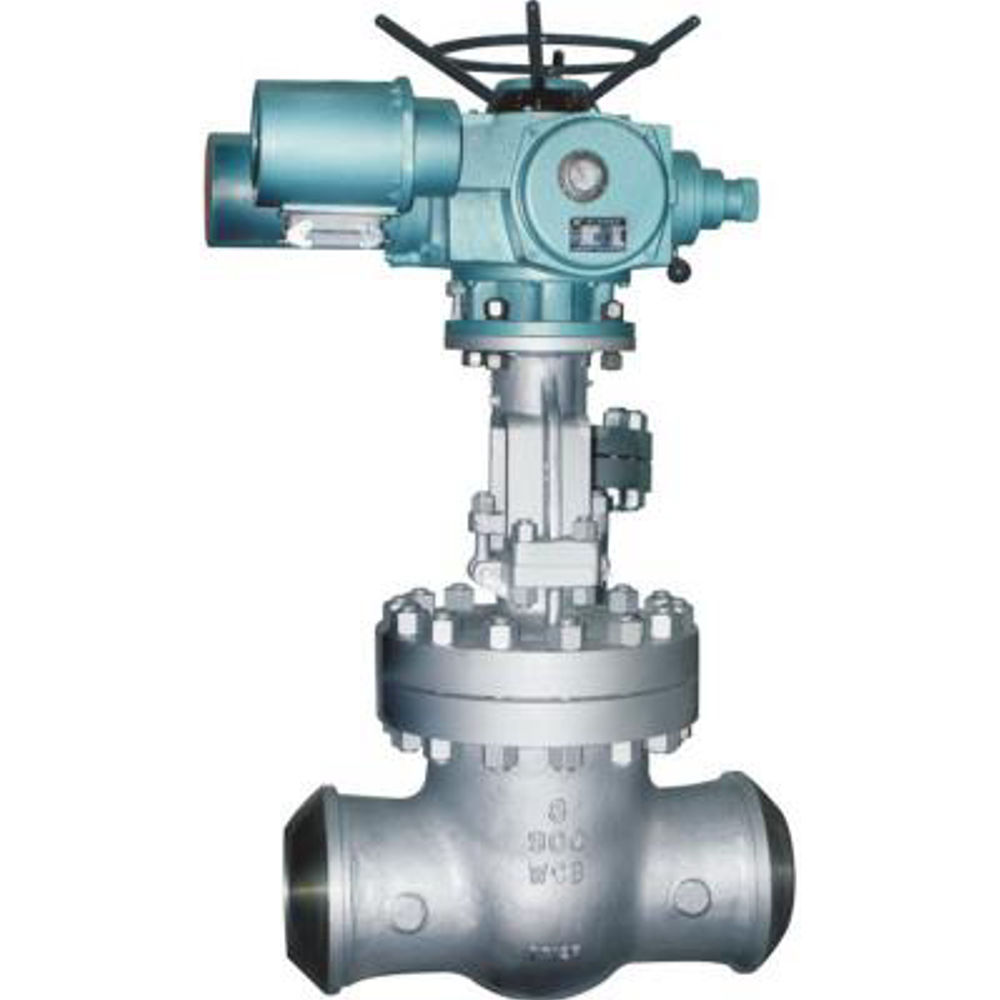

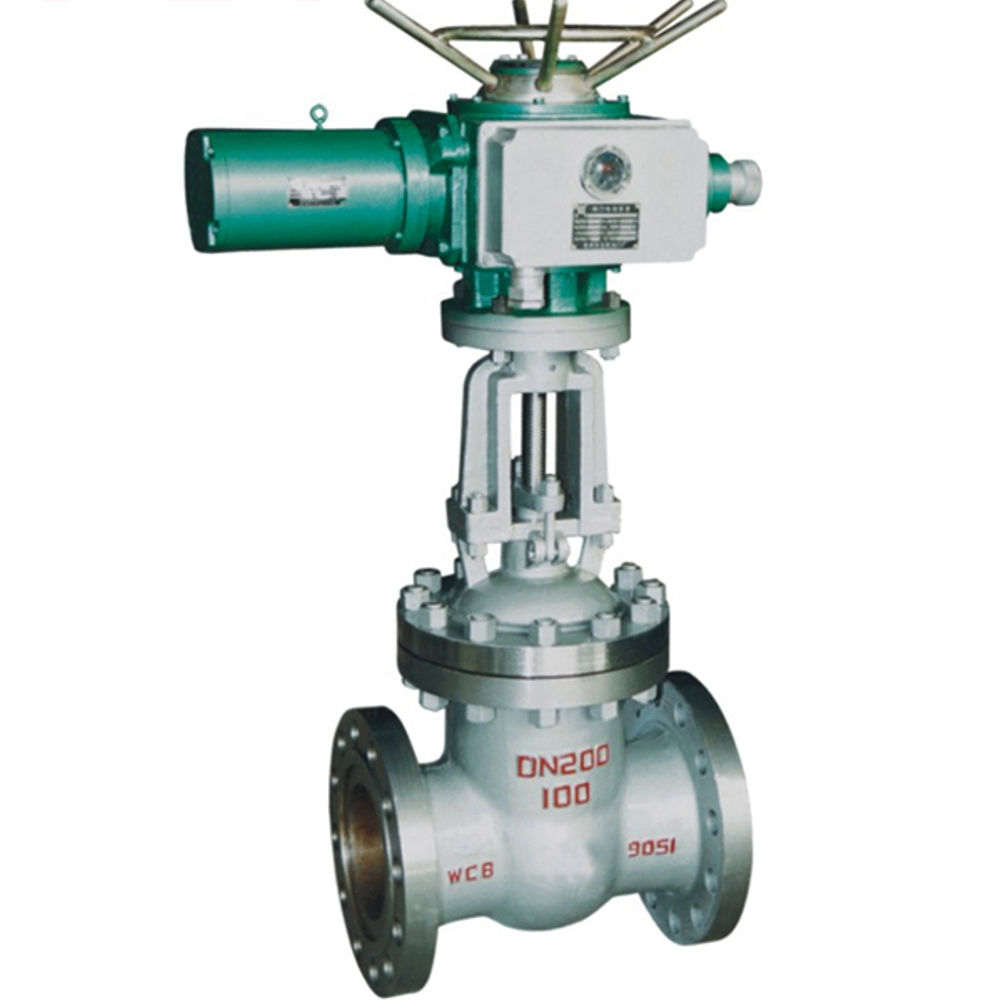

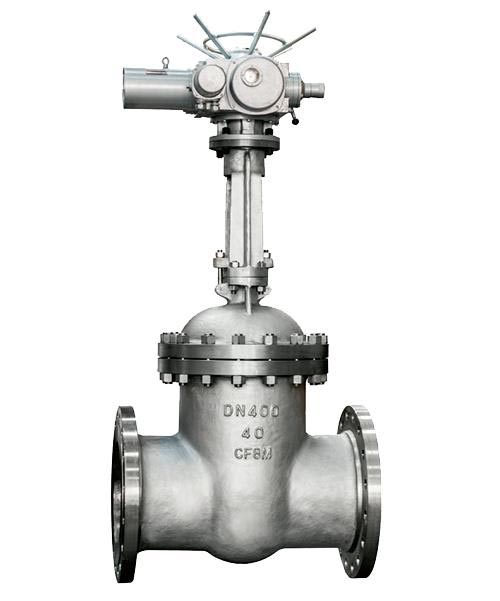

Cast Steel Gate Valve Motorized Operated

Cast Steel Gate Valve Motorized Operated Specification

Connection
Flange Type

Size
2 inch to 48 Inch

Usage
Industrial Usage

Material
Carbon Steel

Type
Wedge Gate Valve

Height
50 Centimeter (cm)

Power Source
Electrical

Pressure
5 Bar

Product Type
Gate Valve Motorized Operated

Media
Other

Weight
85 Kilograms (kg)

Width
50 Centimeter (cm)

Port Size
2 inch to 48 Inch

Length
50 Centimeter (cm)

Warranty
18 Month or 24 month

Cast Steel Gate Valve Motorized Operated Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai Port

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
250 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Cast Steel Gate Valve Motorized Operated

UTVC Make Gate valve flanged end

Gate Valves are largely designed to start or stop a flow when a straight line flow of fluid and minimum flow restriction are needed. In service, these gate valves are pretty much kept either fully open, or fully closed. Gate valves are primarily made up to start or stop a flow when a straight line flow of fluid and minimum flow restriction is needed.

In service, these Gate Valves are pretty much kept either fully open, or fully closed. When turned open, the disc of the gate is completely removed allowing materials to pass. This gives the gate valve good shut-off property and allows it a bidirectional movement. They cannot be quickly blocked or unblocked. The Gate Valves shakes when it is blocked.

When turned open, the disc of the gate is completely removed allowing materials to pass. even though this gives the valve good shut-off property and bidirectional, they cannot be quickly open or close and are responsive to shaking when open.

Cast steel body construction providing liberal strength to meet most conditions
Integral yoke & bonnet; Outside screw & yoke, bolted bonnet
Single flexible wedge disc compensates for deformation of body due to pipe stresses
Seal welded seat ring eliminates leak path behind rings and for long trouble-free service
Available in flanged end connection; butt weld end also available
100% tested according to API 598

Standards

Design to ASME B16.34
Face-to-Face/End-to-End: ASME B16.10
Flange Dimensions: ASME B16.5
Weld End: ASME B.16.25
Basic Design: API 600

Note

TFor non-horizontal installation,
Please ensure to consult with us separately,
As special request must be generated to ensure proper function

Specification:

Design	API, British standard API 600
Material	Cast Steel CS ASTM A 216 WCB, WC6, WC9, WC5, LCB, CF8, CF8M, CF3M .
Disc & Seat	CS SS304.304L, SS316, 316L,
Trims	F6 SS 304,304L, 316,316L, satellite HF etc.
Action	Hand Wheel and Gear Box
Rating	ASA 150, 300, 600, 900, 1500, 2500
Ends conn.	Flanged ends, Butt weld, B16.10, B16.25
Size	2" To 48"
Mfg.	BS 1414, API 600, ASME B16.34
Testing	API 598, BS 6755
Application	Oil, Gas, Air, Water, Chemicals, Pharmaceuticals , Acid, Foods, Vacuum, Heat Treatment, Paper & Sugar Industries, Petroleum Industries, Edible oil industries
