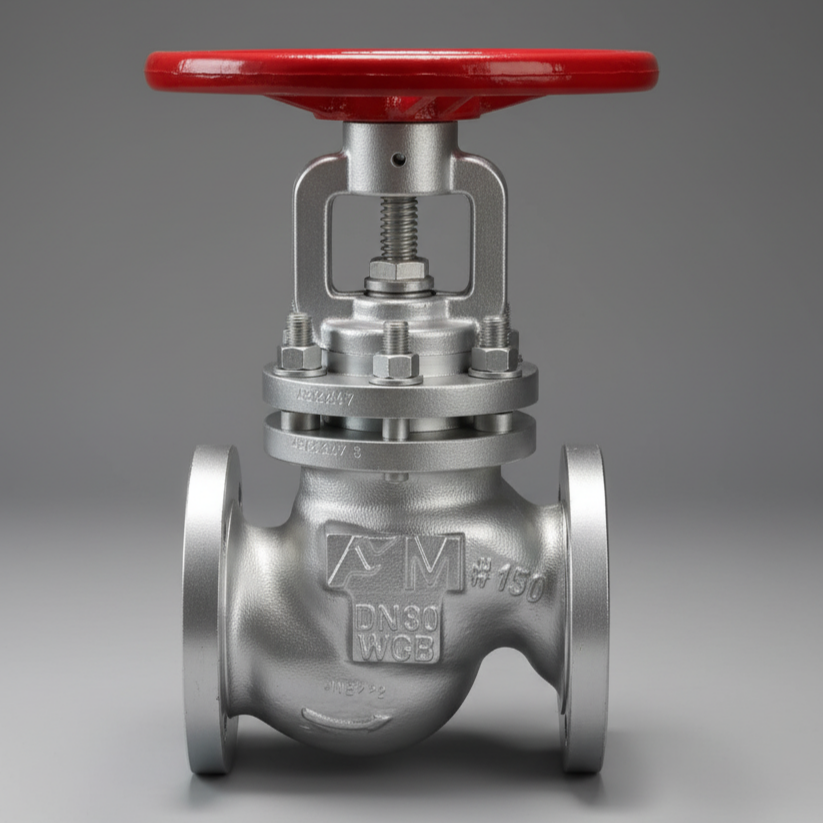

DN80 Forbes Marshall Cast Steel Piston valve Class 150 PSVAL

DN80 Forbes Marshall Cast Steel Piston valve Class 150 PSVAL Specification

Connection Type
Flanged End

Material
Cast Steel A216 Gr.WCB

Sealing
Class IV

Usage
perfect tightness and durable stability on different media such as steam, superheated steam, heat transfer fluid, water and compressed air

Application
perfect tightness and durable stability on different media such as steam, superheated steam, heat transfer fluid, water and compressed air

Size
80 mm

Height
480 Millimeter (mm)

Product Type
Cast Steel Piston valve

Port Size
80 mm

Weight
38 Kilograms (kg)

Color
Silver

Length
241 Millimeter (mm)

Width
191 Millimeter (mm)

Disc
SS

DN80 Forbes Marshall Cast Steel Piston valve Class 150 PSVAL Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai Port

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
50 Pieces Per Day

Delivery Time
1 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
As per Standard Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About DN80 Forbes Marshall Cast Steel Piston valve Class 150 PSVAL

Description

Forbes Marshall Piston Valves, PSVAL, provide perfect tightness and durable stability on different media such as steam, superheated steam, heat transfer fluid, water and compressed air.

Feature:

480 to 600 % higher sealing area.
Class VI bubble tight shut off: burnished piston sealing.
Zero gland leakage, Soft seated Sealing Perfect interface fit, Interchangeable parts
Protection of wetted parts: In open and closed condition, piston remains enclosed in sealing rings and is hence protected from erosive or corrosive material.

Benefit:

Offers Class VI bubble tight shutoff with zero leakage.
Smooth operating eliminates changes of water hammering in the line.
Ease of maintenance as critical components can be replaced without removal of valve from line.
Valve seating on the sides eliminates the possibility of wire drawing effect.
Low cost of operation, maintenance and repairs.
