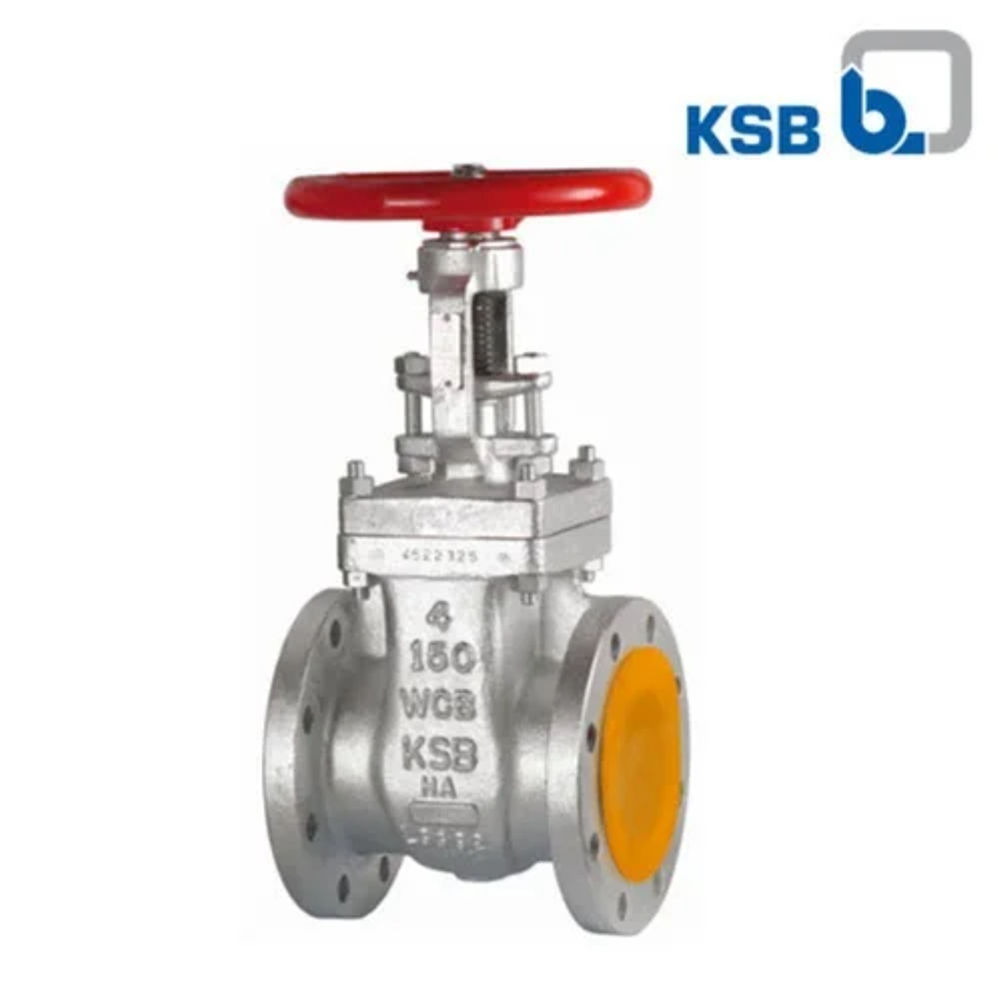

KSB Make Cast Steel Gate Valves Class 150 Flanged end

KSB Make Cast Steel Gate Valves Class 150 Flanged end Specification

Connection Type
Flanged end or Butt Weld End

Material
WCB, WC6, WC9, C12A

Valve Size
2 inch to 48 inch

Application
Industrial Uses

Usage
Industrial Uses

Type
Cast Steel Gate Valves Class 150

Size
2 inch to 48 inch

Height
50 Centimeter (cm)

Product Type
Cast Steel Gate Valves Class 150

Media
Gas, Base, Water, Oil, Acid

Port Size
2 inch to 48 inch

Weight
50 Kilograms (kg)

Length
50 Centimeter (cm)

Width
50 Centimeter (cm)

KSB Make Cast Steel Gate Valves Class 150 Flanged end Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai Port

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
50 Pieces Per Week

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
South India, Central India, All India, West India, North India, East India

About KSB Make Cast Steel Gate Valves Class 150 Flanged end

The KSB Gate Valve SICCA 150-600 Type GTC is made to deliver uncompromising performance in high-pressure and high-temperature environments. Designed to follow international standards, this high-strength valve ensures safe shutdown in steam, water, gas, and oil systemsmaking it a selected choice for power plants, oil & gas facilities, and process industries.

With a hard stuff design, pressure-sealed cover, and forged or cast steel body, the valve offers exceptional sealing, long service life, and safe operation even under difficult conditions.

Product Specifications

Specification	Details
Type:	Outside Screw and Yoke (OS&Y), Bolted Bonnet / Pressure Seal Design
Pressure Class:	ASME Class 150, 300, 600
Size Range:	50 mm to 600 mm (2" to 24")
Design Standard:	BS 1414 / API 600
End Connection:	Flanged Ends (ASME B16.5) or Butt Weld Ends (ASME B16.25)
Body Materials:	ASTM A216 WCB, ASTM A217 WC6, WC9
Wedge Type:	Solid/Flexible/Double Disc
Trim Options:	1, 5, 8, 10, 12
Face-to-Face:	ASME B16.10
Test Standards:	API 598, BS 6755
