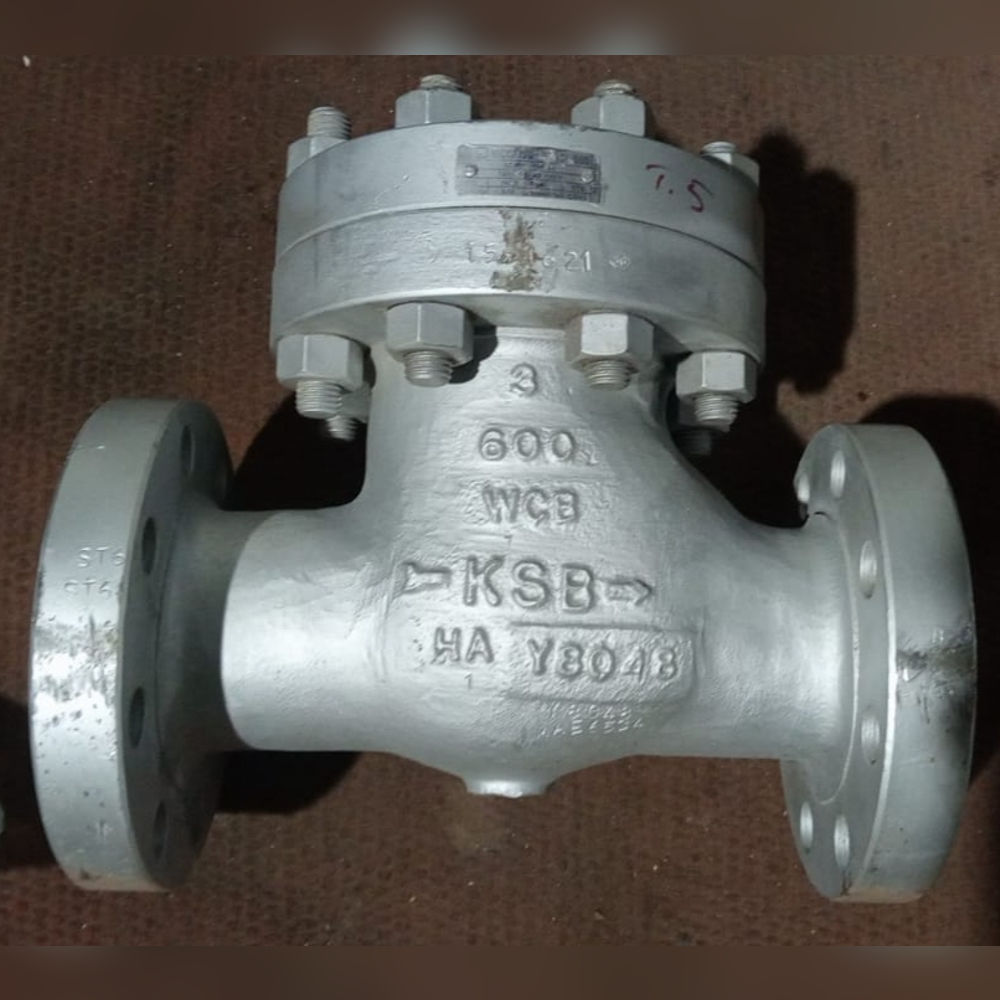

KSB Make Cast Steel Swing Check Valves Class 600 Flanged end

KSB Make Cast Steel Swing Check Valves Class 600 Flanged end Specification

Material
WCB, CF8, CF8M, WC6, WC9

Valve Size
2 Inch to 48 Inch

Connection Type
Flanged end or Butt Weld End

Usage
Industrial Uses

Application
Industrial Uses

Type
Cast Steel Swing Check Valves Class 300

Size
2 Inch to 48 Inch

Height
50 Millimeter (mm)

Product Type
Cast Steel Swing Check Valves Class 300

Weight
50 Kilograms (kg)

Port Size
2 Inch to 48 Inch

Length
50 Centimeter (cm)

Width
50 Centimeter (cm)

KSB Make Cast Steel Swing Check Valves Class 600 Flanged end Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai Port

Supply Ability
50 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

About KSB Make Cast Steel Swing Check Valves Class 600 Flanged end

The KSB Swing Check Valve SICCA 150-600 Type SCC is a high-integrity, designed to protect low water in pipelines handling steam, water, oil, gas, and other industrial media. Made with hard construction and designed for long-term safety, this valve is a critical safety component for power plants, refineries, chemical processing units, and high-pressure systems.

Featuring a strong cast or forged steel body, bolted or pressure seal bonnet, and swing disc machine, the SCC series ensures constant performance and protection for your process equipment.

Product Specifications

Specification	Details
Valve Type:	Swing Check (Non-Return Valve)
Design Standard:	BS 1868 / API 6D
Pressure Class:	ASME 150 / 300 / 600
Size Range:	50 mm to 600 mm (2" to 24")
Body Materials:	ASTM A216 WCB, A217 WC6, WC9
Bonnet Options:	Bolted Bonnet / Pressure Seal Bonnet
Trim Options:	1, 5, 8, 10, 12
End Connections:	Flanged Ends ASME B16.5 Butt Weld Ends ASME B16.25
Face-to-Face Dimensions:	ASME B16.10
Testing Standards:	API 598 / BS 6755 Part I
