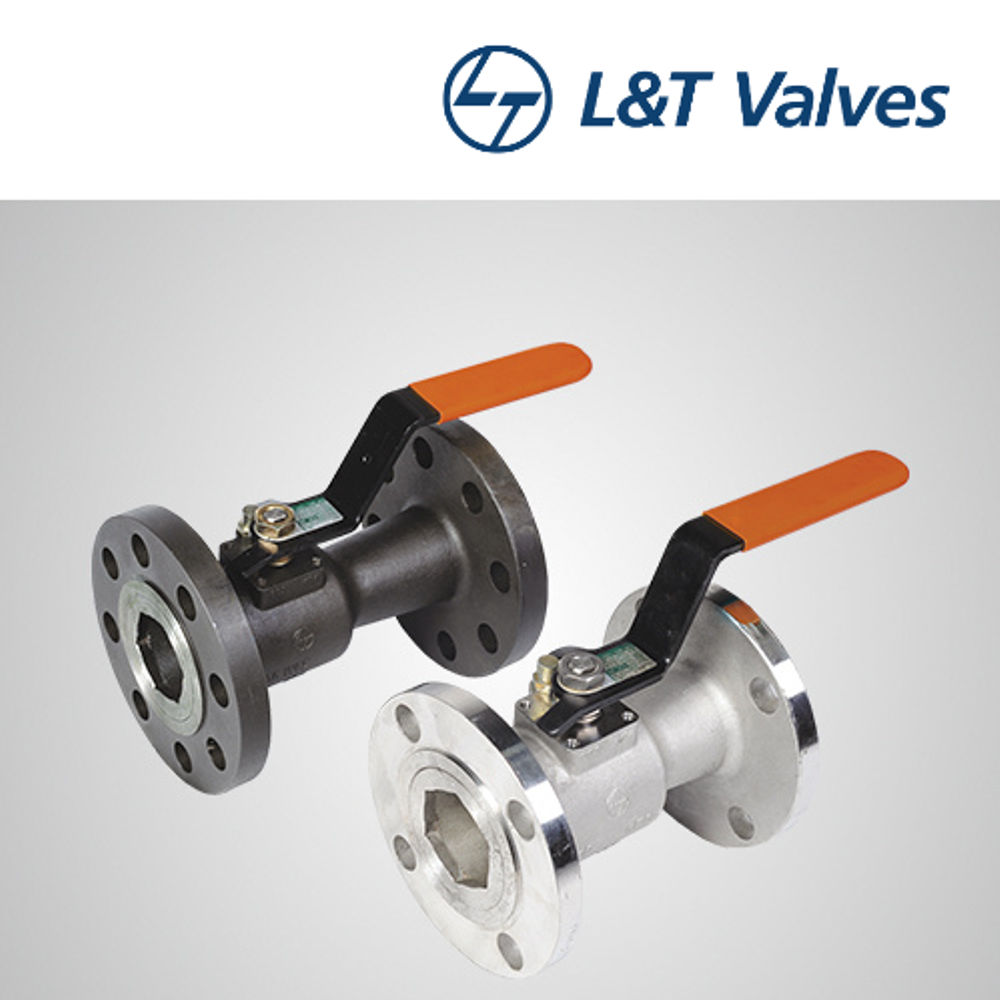

L&T CS Ball valve Single Piece Design Class 150 L1RF1C

L&T CS Ball valve Single Piece Design Class 150 L1RF1C Specification

Material
WCB, CF8, CF8M

Connection Type
Flanged end or Welded

Valve Size
2 Inch to 12 Inch

Usage
Industrial Uses

Application
Industrial Uses

Size
2 Inch to 12 Inch

Product Type
Single Piece Design Ball Valves

Weight
20 Kilograms (kg)

Port Size
2 Inch to 12 Inch

Length
50 Centimeter (cm)

Width
20 Centimeter (cm)

L&T CS Ball valve Single Piece Design Class 150 L1RF1C Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai Port

Supply Ability
20 Pieces Per Day

Delivery Time
1 Days

Sample Policy
Contact us for information regarding our sample policy

About L&T CS Ball valve Single Piece Design Class 150 L1RF1C

Floating Ball Valves

Size " to 8" (8 mm to 200 mm)

ASME Class Class 150 to 2500

Design Standard ISO 17292, API 608, API 6D

L&T Valves manufactures a versatile range of Process Ball Valves in single, two and three piece constructions. The valves are available in full-bore and regular-bore designs, in a variety of end connections and materials to suit customer requirements.

The valves are of floating-ball design where the ball moves towards the downstream seat, under pressure, to effect a tight seal.

Salient Features:

Fire-safe to ISO 10497 and API 607
Mirror-finished solid stainless ball
Fine-grained PTFE seats
Cavity Pressure Relief mechanism
Blowout-proof stem
High integrity stem sealing Belleville springs compensate for wear and thermal expansions
Antistatic feature
Actuator-mounting flange conforms to ISO 5211
SIL3 Safety Integrity Level for Automated Valves
