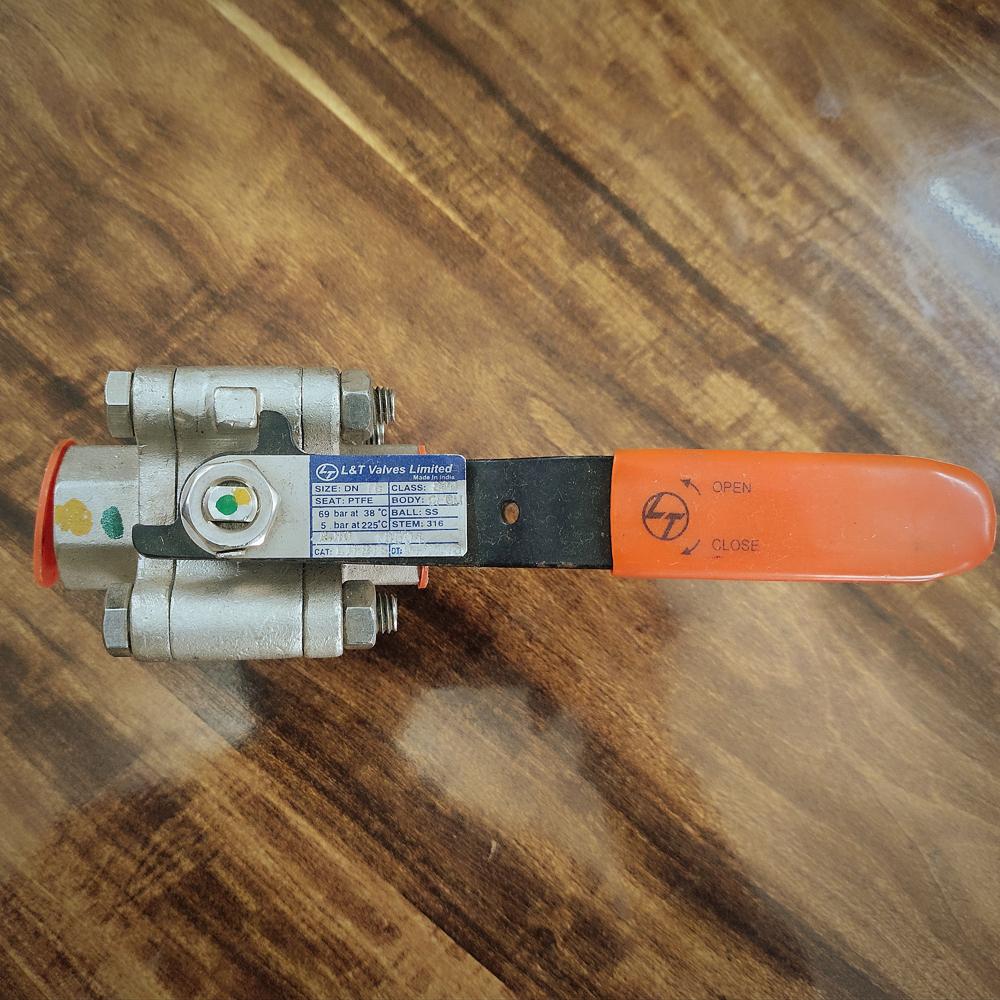

Send InquiryL&T Make SS316 Ball Valve Reduce Bore Class 800 Screwed End L3RBTS
L&T Make SS316 Ball Valve Reduce Bore Class 800 Screwed End L3RBTS Specification
- Valve Type
- Three Piece Design
- Material
- CF8M / SS316
- Valve Size
- 15mm to 50mm
- Connection Type
- Screwed End
- Application
- Oil, FLuid, Gas
- Sealing
- PTFE / RPTFE
- Usage
- Oil, FLuid, Gas
- Size
- 15mm to 50mm
- Height
- 150 Millimeter (mm)
- Media
- Gas, Base, Water, Oil, Acid
- Product Type
- SS316 Ball valve Screwed End
- Port Size
- 15mm to 50mm
- Weight
- 6 Kilograms (kg)
- Color
- Silver
- Width
- 80 Millimeter (mm)
- Length
- 132 Millimeter (mm)
- Disc
- SS316
L&T Make SS316 Ball Valve Reduce Bore Class 800 Screwed End L3RBTS Trade Information
- Minimum Order Quantity
- 1 Piece
- FOB Port
- Mumbai Port
- Payment Terms
- Telegraphic Transfer (T/T)
- Supply Ability
- 500 Pieces Per Day
- Delivery Time
- 1 Days
- Sample Available
- No
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- As per Standard Packing
- Main Export Market(s)
- South America, Asia, Australia, Central America, North America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- Material Test Certificate
About L&T Make SS316 Ball Valve Reduce Bore Class 800 Screwed End L3RBTS
Floating Ball Valves
L&T Valves manufactures a versatile range of Process Ball Valves in single, two and three piece constructions. The valves are available in full-bore and regular-bore designs, in a variety of end connections and materials to suit customer requirements.
The valves are of floating-ball design where the ball moves towards the downstream seat, under pressure, to effect a tight seal.
Salient Features:
- Fire-safe to ISO 10497 and API 607
- Mirror-finished solid stainless ball
- Fine-grained PTFE seats
- Cavity Pressure Relief mechanism
- Blowout-proof stem
- High integrity stem sealing Belleville springs compensate for wear and thermal expansions
- Antistatic feature
- Actuator-mounting flange conforms to ISO 5211
- SIL3 Safety Integrity Level for Automated Valves
Versatile Range:
- Single, two and three piece constructions
- Full-bore and regular-bore designs
- Soft and metal-seated
- Offered in carbon steel, stainless steel and duplex stainless steels
- Screwed, socket-weld and flanged ends
- ASME classes up to 2500
- Variety of actuation options
L&T make SS316 Ball Valve Reduce Bore Class 800# Screwed End
Body: ASTM A352 Gr.CF8M
Ball: ASTM A352 Gr.CF8M/F316
Seat: PTFE/ RPTFE
Stem: SS316
Design: ISO 17292 / API6D
L&T make SS316 Ball Valve Reduce Bore Class 800# Screwed End
Body: ASTM A352 Gr.CF8M
Ball: ASTM A352 Gr.CF8M/F316
Seat: PTFE/ RPTFE
Stem: SS316
Design: ISO 17292 / API6D
Price 1649.0 INR/ Piece
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 500 Pieces Per Day
- Delivery Time
- 1 Days
- Main Domestic Market
- All India
- Main Export Market(s)
- South America, Asia, Australia, Central America, North America, Eastern Europe, Western Europe, Middle East, Africa
