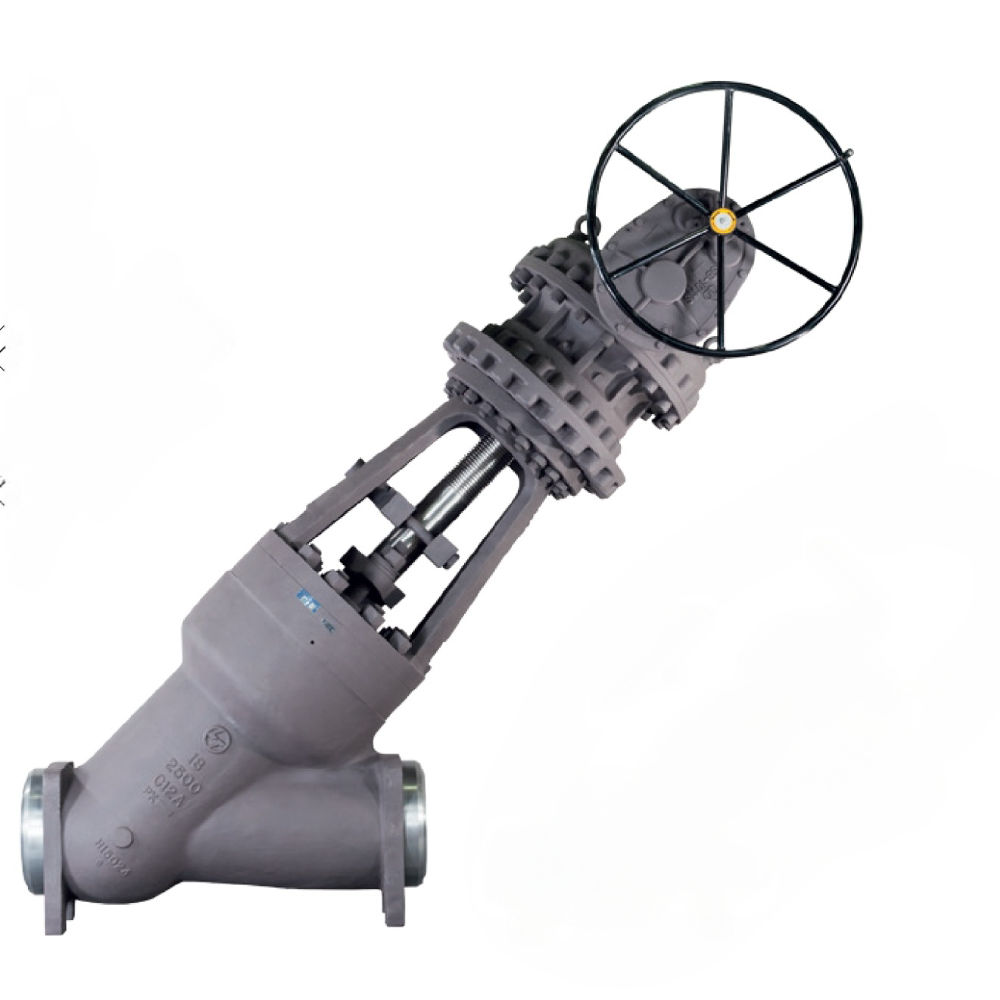

L&T Pressure Seal Bonnet Globe Valve Class 2500 Butt Weld End

L&T Pressure Seal Bonnet Globe Valve Class 2500 Butt Weld End Specification

Connection Type
Butt Weld End

Valve Type
Pressure Seal Bonnet

Material
WCB, WCC, WC6, WC9, C12

Sealing
Metal Seated

Application
Oil, Gas, Petroleum

Usage
Oil, Gas, Petroleum

Type
Pressure Seal Bonnet

Size
50 mm to 1050 mm

Product Type
Pressure Seal Bonnet Globe Valves

Port Size
50 mm to 1050 mm

Weight
1800 Kilograms (kg)

Color
Silver

Disc
SS

L&T Pressure Seal Bonnet Globe Valve Class 2500 Butt Weld End Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai Port

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
10 Pieces Per Week

Delivery Time
1 Week

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
As per Standard Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

L&T Pressure Seal Bonnet Globe Valve Class 2500 Butt Weld End About

Globe Valves - Pressure-seal

Size	3" to 18" (80 mm to 450 mm)
ASME Class	Class 900 to 4100
Design Standard	ASME B 16.34

Beyond Standards:

Pressure-seal Globe Valve design conforms to ASME B 16.34.
CE Marking Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H
Atex - Meets requirements of Atex Directive 94/9/EC (ATEX), category 2 non-electrical equipment
Safety Integrity Level for Automated Valves - SIL 3 certification available
Pressure-seal Globe Valves (up to Class 2500) used in Oil & Gas industry tested to ISO 15848-1 Class BH
Pressure-seal Globe Valves successfully tested to Shell Design Validation Test 77/300 and witnessed by Shell Inspectors

Features that Add Value:

Valves in intermediate classes reduce total cost of ownership
Pressure-Seal mechanism utilizes line pressure to enhance seal; ensures sealing integrity at higher operating pressures.
In-situ hardfaced seat design for all sizes
Higher hardfacing thickness (3 mm) to ensure consistent hot hardness
Body-guided Disc offered in Pressure-seal Globe Valves (all sizes/classes) provides disc stability and avoids vibration of the disc-disc nut assembly
Disc guides hardfaced for longer life
Customised deposition process in F91/ C12A valves to avoid delamination of hardfaced surfaces
Live loading of bonnet bolts for F91/ C12A valves
Special high purity graphite packing (seven rings) provided for pressure rating > Class 2500 in Power applications

Versatile Solutions:

Available in a cast and forged steels and exotic metallurgies for a wide variety of applications
By-pass arrangement provided for over-pressure protection based on customer requirement
ValvTrac RFID tagging offered for reliable digital traceability
