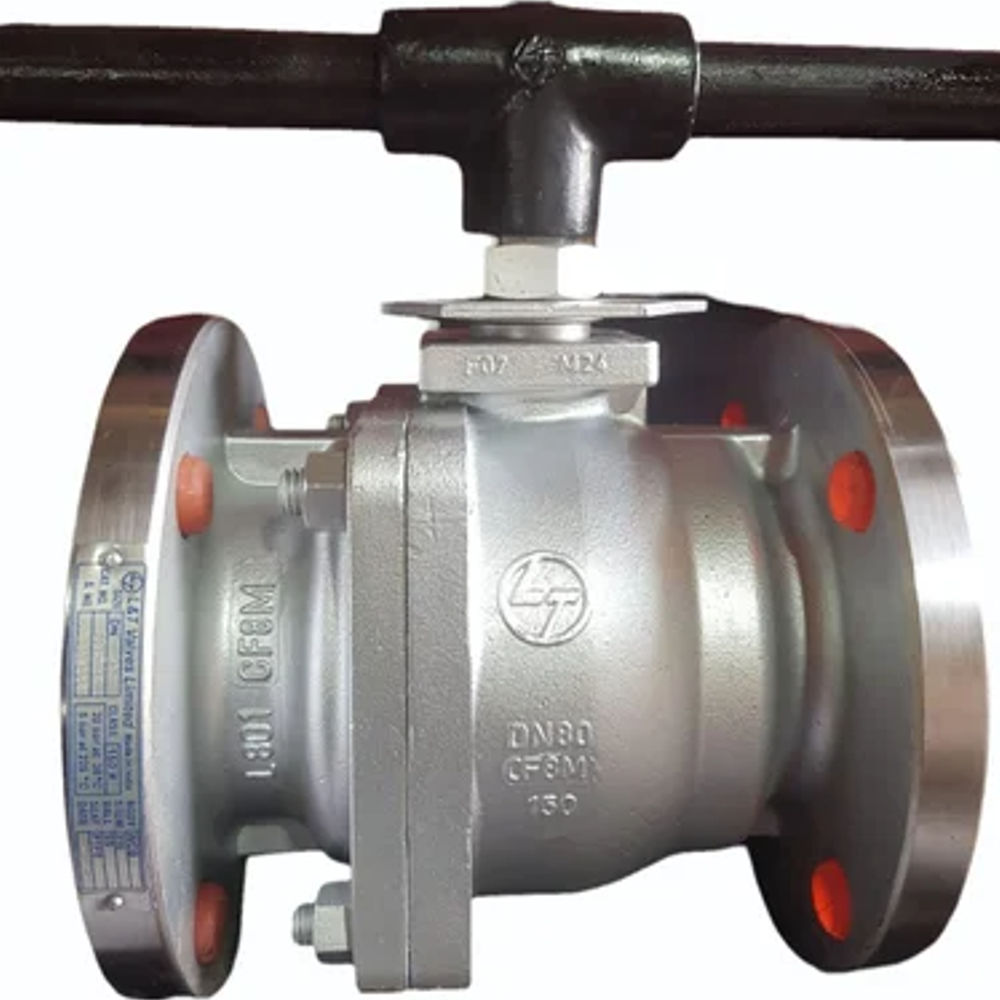

L&T SS316 Ball valve Full Bore Two Piece Design Class 150 L2FF1S

L&T SS316 Ball valve Full Bore Two Piece Design Class 150 L2FF1S Specification

Connection Type
Flanged end Or Welded

Material
CF8, CF8M

Valve Size
2 Inch to 8 Inch

Usage
Industrial Uses

Application
Industrial Uses

Size
2 Inch to 8 Inch

Height
50 Centimeter (cm)

Product Type
Ball valve Full Bore Two Piece Design

Media
Gas, Base, Water, Oil, Acid

Weight
50 Kilograms (kg)

Port Size
2 Inch to 8 Inch

Width
50 Centimeter (cm)

Length
50 Centimeter (cm)

L&T SS316 Ball valve Full Bore Two Piece Design Class 150 L2FF1S Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai Port

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
20 Pieces Per Day

Delivery Time
1 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Middle East, Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe

Main Domestic Market
All India

About L&T SS316 Ball valve Full Bore Two Piece Design Class 150 L2FF1S

Floating Ball Valves

Size	" to 8" (8 mm to 200 mm)
ASME Class	Class 150 to 2500
Design Standard	ISO 17292, API 608, API 6D

L&T Valves manufactures a versatile range of Process Ball Valves in single, two and three piece constructions. The valves are available in full-bore and regular-bore designs, in a variety of end connections and materials to suit customer requirements.

The valves are of floating-ball design where the ball moves towards the downstream seat, under pressure, to effect a tight seal.

Salient Features:

Fire-safe to ISO 10497 and API 607
Mirror-finished solid stainless ball
Fine-grained PTFE seats
Cavity Pressure Relief mechanism
Blowout-proof stem
High integrity stem sealing Belleville springs compensate for wear and thermal expansions
Antistatic feature
Actuator-mounting flange conforms to ISO 5211
SIL3 Safety Integrity Level for Automated Valves
