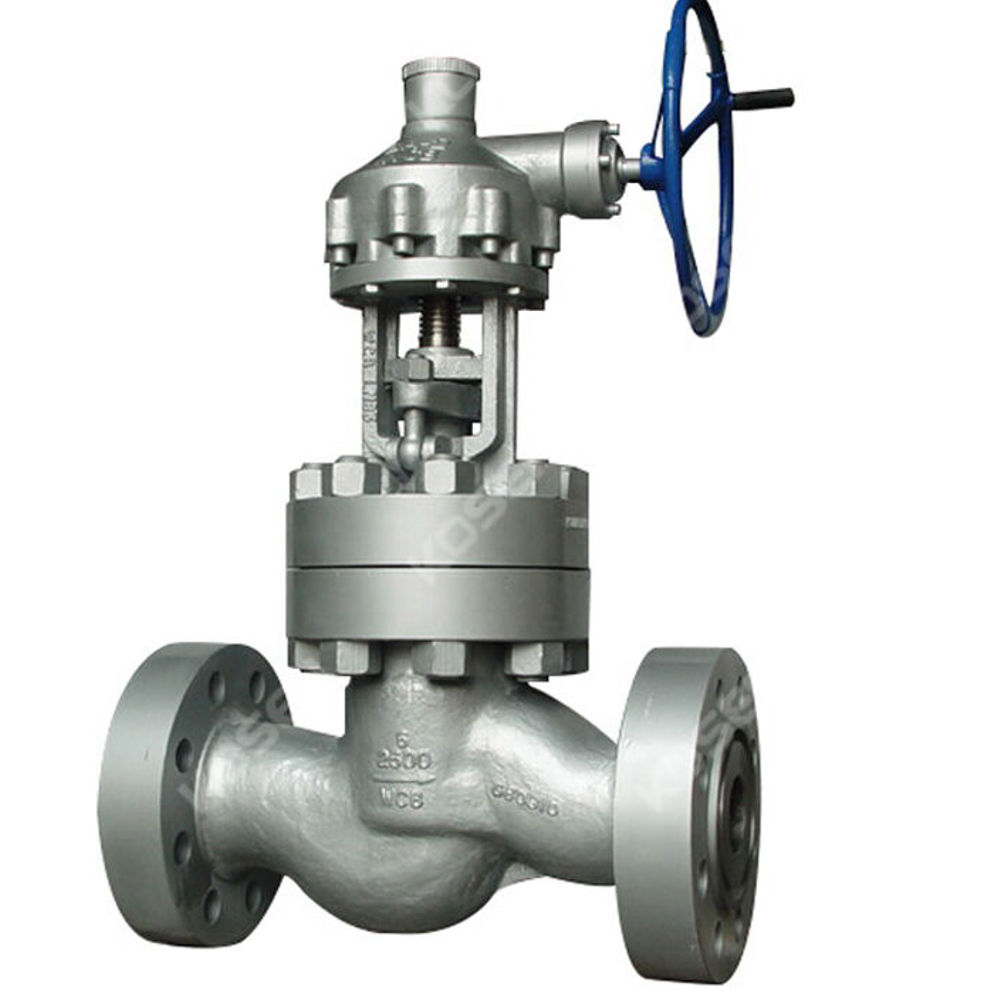

Cast Steel Globe Valves Class 2500 Flanged end

Cast Steel Globe Valves Class 2500 Flanged end Specification

Connection
Flange Type

Usage
Industrial Usage

Material
Carbon Steel

Size
2 Inch To 48 Inch

Height
50 Centimeter (cm)

Media
Other

Product Type
Cast Steel Globe Valves Class 2500

Weight
115 Kilograms (kg)

Port Size
2 Inch To 48 Inch

Length
50 Centimeter (cm)

Width
50 Centimeter (cm)

Application
Cooling Water System, Fuel Oil System, Boiler Vents & Drains, Turbine Seals & Drain

Warranty
18 month Or 24 Month

Cast Steel Globe Valves Class 2500 Flanged end Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai Port

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
50 Pieces Per Day

Delivery Time
1 Days

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Cast Steel Globe Valves Class 2500 Flanged end

Description

A heavy duty globe valve to API and BS standards. The seat ring and Wedge Disc are ground and lapped to a mirror finish that provides matching sealing surfaces. A plug type disc is supplied as standard with flat and regulating type discs available on request. Heat treated stainless steel STEM with precision machined ACME threads for long lasting service. Machined Backseat Bushing to provide a secondary metal-metal stem seal. Rising Stem gives open and closed indication of position with large diameter Hand wheel for easy operation. Austenitic ductile iron YOKE SLEEVE gives resistance to heat, corrosion and wear. Two piece self-aligning GLAND BUSHING and GLAND FLANGE to prevent damage with high strength alloy steel STUD BOLTS.

Cast Carbon Steel Globe Bolted and Pressure seal

Cast steel 2500 pound globe valve, suitable for 102,1 bar at 38C,57,5 bar at 425C.
Swivel plug disk, OS&Y, F6 trim, flanged ANSI 2500RF

ASME 16.34, API 600 , BS 1873
Bolted Bonnet, Pressure Sealed Bonnet, Welded Bonnet
ASA 2500#
50 to 150mm
RF, RTJ, BW,
Plug Disc, Adjustable Disc, Double Disc
Back Seat Design
Renewable Seat, Welded Seat, Integral Seat

Design, Inspection standards:

API 6D, API 600, ASME B16.34, BS EN13709, BS 1873, ASME B16.10, ASME B16.5.

Hand wheel operated with OS&Y and rising stem.
Gland eyebolts are applied to facilitate packing maintenance and easy dismantling.
Body/Bonnet joint design: male and female matching joint for 600LB; metallic ring gasket seal
T-shaped anti blow-out stem design.
Plug-shaped disc and seating face design allows particular flow characteristic.
Seating surface shall be hardened by stellite 6 overlay.
