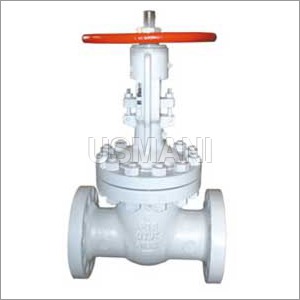

Alloy Steel Gate Valves Flanged end Class 600

Alloy Steel Gate Valves Flanged end Class 600 Specification

Material
Brass

Type
Parallel Gate Valve

Pressure
High Pressure

Alloy Steel Gate Valves Flanged end Class 600 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
250 Pieces Per Day

Delivery Time
1 Days

Main Export Market(s)
Australia, South America, Middle East, Western Europe, Central America, Africa, Asia, Eastern Europe, North America

Main Domestic Market
All India

About Alloy Steel Gate Valves Flanged end Class 600

Avail our offered Gate Valve Class 600 that is used in the several industries for controlling the flow of liquids and gases. Basically, it is a piping apparatus that contains a metallic disc responsible for blocking and allowing the flow of fluids. When this disc is perpendicular to the flow, it does not allow the fluid to pass. One can change the placement of the disc by rotating its knob to allow the fluid to pass. Since it is made of the high-quality material, Gate Valve Class 600 conveniently resist the corrosion and abrasion due to chemical attacks.

SALIENT FEATURES

Body : Robustly designed to withstand stringent duty condition, Smoothly configurated to reduce Turbulence.

Long and Accurate Guides : Optionally toleranced for free movement of wedge in flow path and retaining leak tightness even in fluctuating line condition.

Super Finish Seating Faces : High accuracy and super finish by lapping of body ring and wedge seat faces, guarantee zero leak and reduce operational torque.

Deep Stuffing Box : Facilitates extra number of gland packings and ensures pressure tightness and long packing life, can be repacked while valve is back seated.

Spindle-Wedge : T-SLOT is housed in the wedge in such a manner to improve transmission efficiency of torque from spindle to wedge and ensure leak tightness. the solid flexible wedges fitted in Gate Valves are Cast Steel having 13% Chrome Welded seat facings, machined with extreme accuracy and finally ground and lapped to a mirror finish to secure no-leak condition and to minimize the risk of galling.

TEST PRESSURE-PSI :

	Hydrostatic	Body	Seat
CLASS	150	450	315
CLASS	300	1122	825
CLASS	400	1450	1060
CLASS	600	2175	1600
CLASS	900	3250	2400
CLASS	1500	5400	4000
CLASS	2500	9000	6000

NOTES FOR GATE VALVES :

The standard Body/ Bonnet material is of Cast Steel to ASTM A 216 Gr. WCB. Body-bonnet in Grade LCB/C-5/WC-6/ WC-9/c\CF-8/CF-8m/CF-3/cf-3m trim: 304/316/ Stellite ect. Available to suit Requirements.

Yoke will be provided from size 8" and onwards

To facilitate operation, all heavy duty valves have Yoke Sleeves fitted with Thrust Ball Bearings. In class 150 and 300 ids, they are provided from Nominal Diameter 14" and onwards. In class 600,900 and 1500 IBS. from 6" and onwards.

Pressure sealed bonnet available in higher classes on Request.

Pressure sealed bonnet available in higher classes on Request.

Part	Material	Specification
Body	Carbon Steel	ASTM A216 Gr WCB
Bonnet	Carbon Steel	ASTM A216 Gr WCB
Body Seat	13% CR.S.S	AISI 410 OR ASTM A217 GR CA 15 FACED HF*
Wedge	Carbon Steel	ASTM A216 Gr WCB AISI 410 or ASTM A217 GR CA 15 FACED HF*
Spindle	13% CR.S.S	AISI 410
Back Seat Bush	13% CR.S.S	AISI 410
Packing	Asbestos Graphited To Suit Service
Gland	Carbon Steel	IS 226 OR ASTM A216 Gr WCB
Bonnet Stud	Carbon Steel	ASTM-A 193 GR B 7
Bonnet Nut	Carbon Steel	ASTM-A 194 GR 2 H
Gasket	SPW-SS304-CAF
Hand wheel	Malleable lron or Steel	IS 210 GR 20

APPLICABLE STANDARDS:

	API	BS	DIN
PRESSURE TEMPERATURE RATING	ANSI-B 16.5 ANSI-B 16.34	1560	2401
END TO END DIMENSION	ANSI-B 16.10	2080	3202
FLANGES BW ENDS	ANSI-B 16.5 ANSI-B 16.25 / ----	1560 ---- / ----	2543 2544 / 2545
INSPECTION & TESTING	API- 598	5146 / 6755 P.I	3230
SIZE	15MM (1/2 inch) to 600MM (24 inch)
CLASS	150# to 600#
