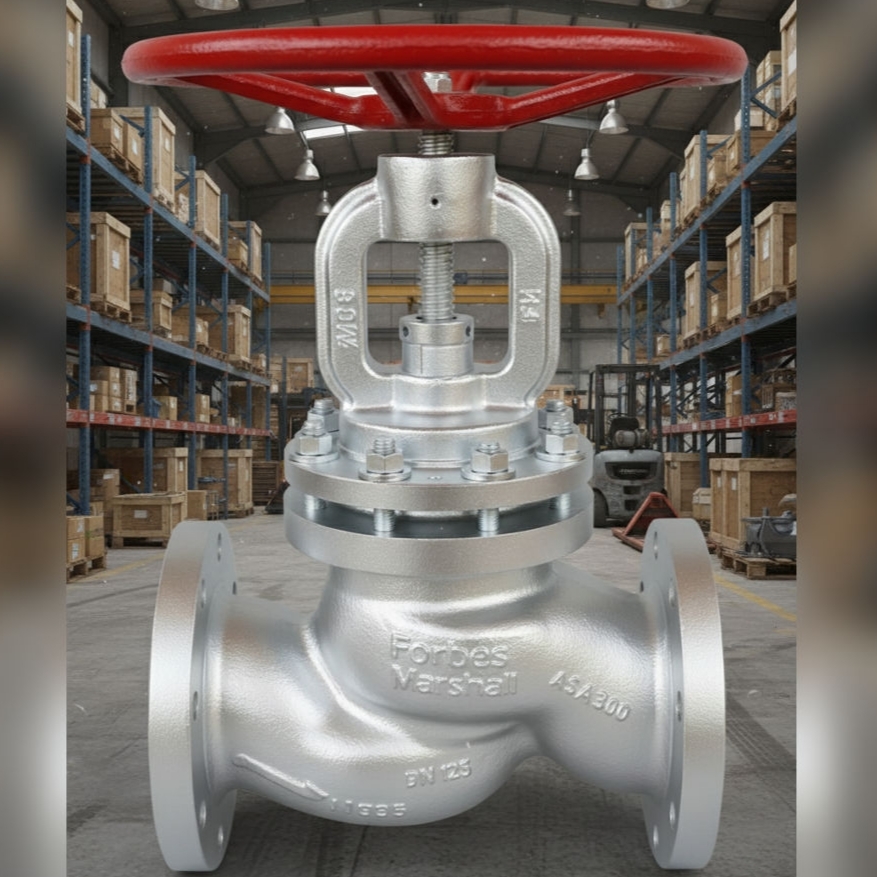

DN125 Forbes Marshall Cast Steel Piston valve Class 300 PSVAL

DN125 Forbes Marshall Cast Steel Piston valve Class 300 PSVAL
DN125 Forbes Marshall Cast Steel Piston valve Class 300 PSVAL
DN125 Forbes Marshall Cast Steel Piston valve Class 300 PSVAL
DN125 Forbes Marshall Cast Steel Piston valve Class 300 PSVAL
DN125 Forbes Marshall Cast Steel Piston valve Class 300 PSVAL
DN125 Forbes Marshall Cast Steel Piston valve Class 300 PSVAL

DN125 Forbes Marshall Cast Steel Piston valve Class 300 PSVAL Specification

  • Material
  • Cast Steel A216 Gr.WCB
  • Connection Type
  • Flanged End
  • Sealing
  • Class IV
  • Usage
  • steam, superheated steam, heat transfer fluid, water and compressed air.
  • Application
  • steam, superheated steam, heat transfer fluid, water and compressed air.
  • Size
  • 125 mm
  • Height
  • 680 Millimeter (mm)
  • Product Type
  • Cast Steel Piston Valve Class 300
  • Port Size
  • 125 mm
  • Weight
  • 97 Kilograms (kg)
  • Color
  • Silver
  • Length
  • 400 Millimeter (mm)
  • Width
  • 280 Millimeter (mm)
  • Disc
  • SS


DN125 Forbes Marshall Cast Steel Piston valve Class 300 PSVAL Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • Mumbai Port
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Supply Ability
  • 50 Pieces Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • As per Standard packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India


About DN125 Forbes Marshall Cast Steel Piston valve Class 300 PSVAL

Description

Forbes Marshall Piston Valves, PSVAL, provide perfect tightness and durable stability on different media such as steam, superheated steam, heat transfer fluid, water and compressed air.

Feature:

  • 480 to 600 % higher sealing area.
  • Class VI bubble tight shut off: burnished piston sealing.
  • Zero gland leakage, Soft seated Sealing Perfect interface fit, Interchangeable parts
  • Protection of wetted parts: In open and closed condition, piston remains enclosed in sealing rings and is hence protected from erosive or corrosive material.

Benefit:

  • Offers Class VI bubble tight shutoff with zero leakage.
  • Smooth operating eliminates changes of water hammering in the line.
  • Ease of maintenance as critical components can be replaced without removal of valve from line.
  • Valve seating on the sides eliminates the possibility of wire drawing effect.
  • Low cost of operation, maintenance and repairs.

Price 48999.0 INR/ Piece

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 50 Pieces Per Day
  • Delivery Time
  • 1 Days
  • Main Domestic Market
  • All India
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
