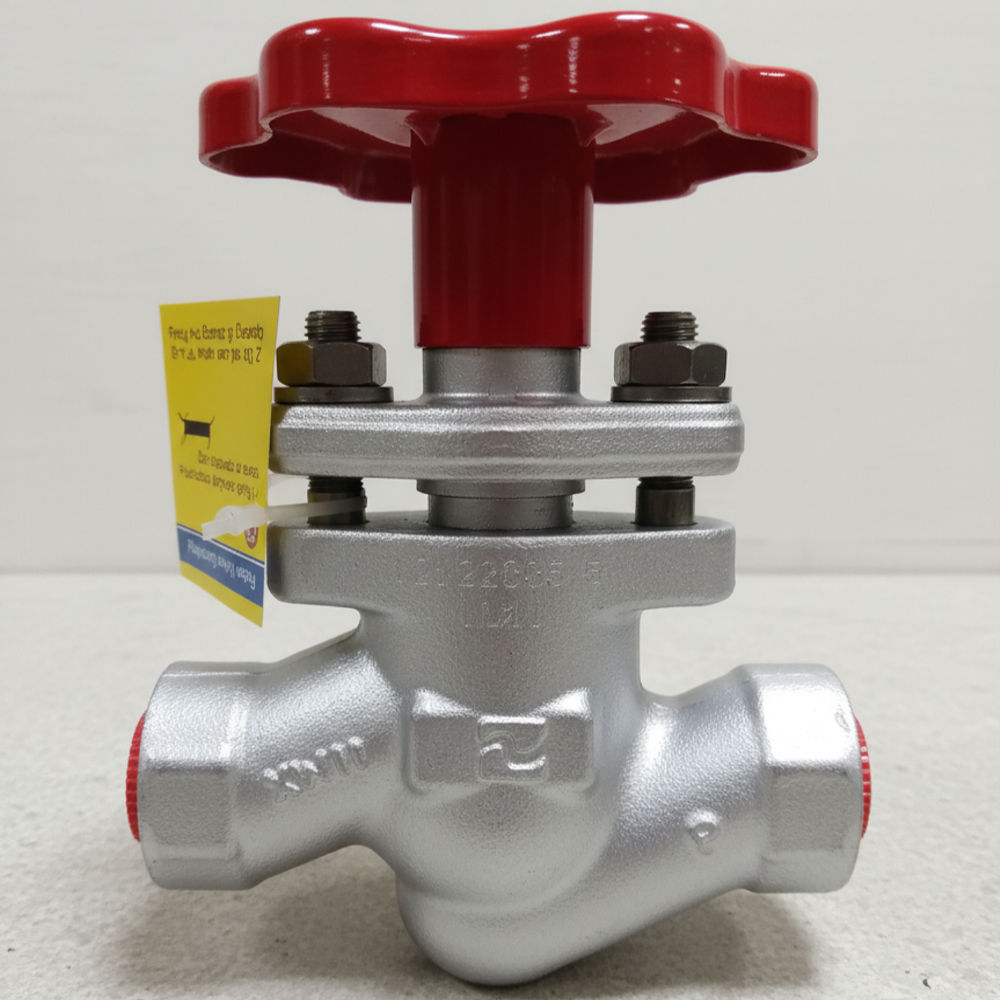

DN20 Forbes Marshall ASTM A105 Piston valve Class 800 PSVAL

DN20 Forbes Marshall ASTM A105 Piston valve Class 800 PSVAL Specification

Material
ASTM A105

Connection Type
Screwed or Socket Weld

Application
steam, superheated steam, heat transfer fluid, water and compressed air.

Sealing
Class IV

Usage
steam, superheated steam, heat transfer fluid, water and compressed air.

Size
20 mm

Height
180 Millimeter (mm)

Product Type
Forged Steel Piston valves

Port Size
20 mm

Weight
2 Kilograms (kg)

Color
Silver

Width
40 Millimeter (mm)

Length
110 Millimeter (mm)

Disc
SS

DN20 Forbes Marshall ASTM A105 Piston valve Class 800 PSVAL Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai Port

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
As Per Standard Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About DN20 Forbes Marshall ASTM A105 Piston valve Class 800 PSVAL

Description Forbes Marshall Piston Valves, PSVAL, provide perfect tightness and durable stability on different media such as steam, superheated steam, heat transfer fluid, water and compressed air.
Sizes and Pipe Connection DN 15 / 20 / 25 / 32 / 40
Screwed BSPT / NPT / BSP, socket weld ends, flanged to class 150 / 300 / 600 available on special request Body design as per Class 800 - Available on request

Installation
The valve is designed for installation in a vertical or horizontal line with inlet as per the arrow direction. To open the valve turn hand wheel till it stops at the top and to close, turn hand wheel till it touches the bonnet. Do not use F key. If any leakage is observed during operation at the outlet, close valve fully and tighten opposite nuts equally half or one turn until leakage stops.
