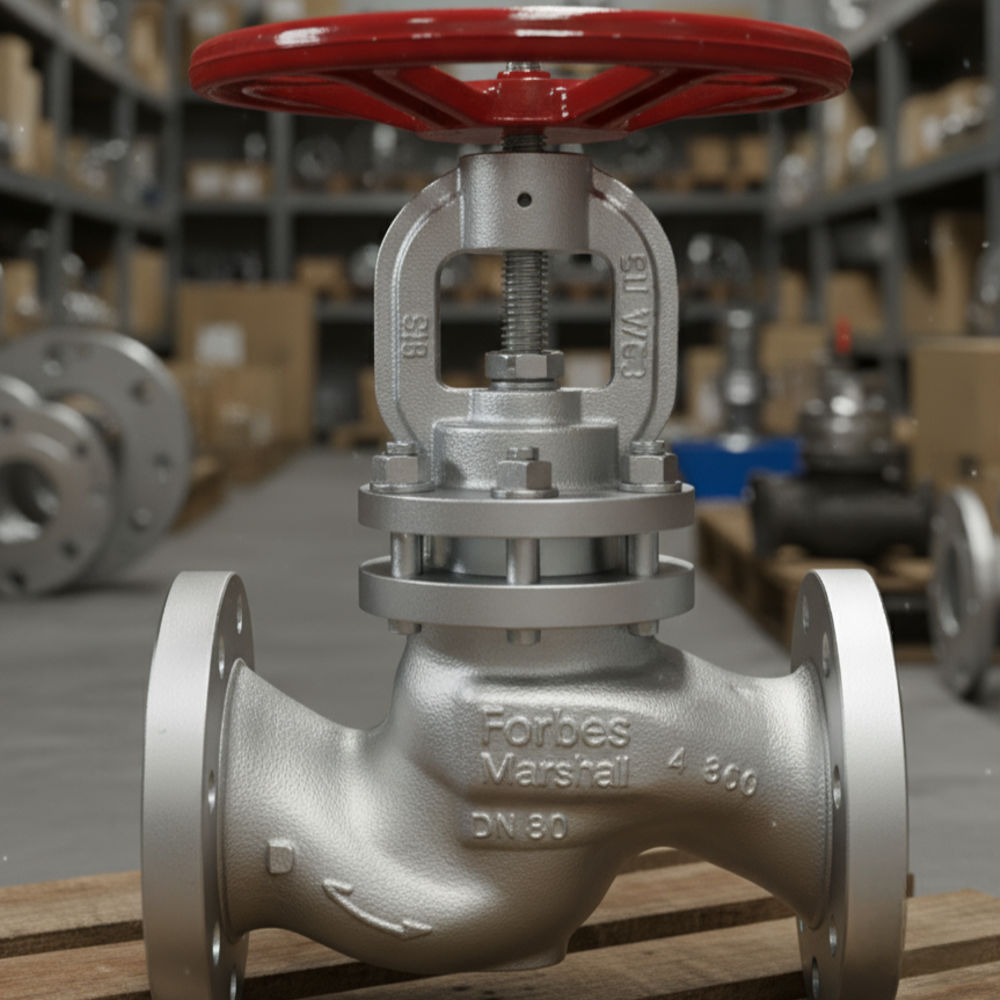

DN80 Forbes Marshall Cast Steel Piston valve Class 300 PSVAL

DN80 Forbes Marshall Cast Steel Piston valve Class 300 PSVAL Specification

Material
Cast Steel A216 Gr.WCB

Connection Type
Flanged End

Usage
steam, superheated steam, heat transfer fluid, water and compressed air.

Application
steam, superheated steam, heat transfer fluid, water and compressed air.

Sealing
Class IV

Size
80 mm

Height
490 Millimeter (mm)

Product Type
Cast Steel Piston Valve Class 300

Weight
58 Kilograms (kg)

Color
Silver

Width
210 Millimeter (mm)

Length
318 Millimeter (mm)

Disc
SS

DN80 Forbes Marshall Cast Steel Piston valve Class 300 PSVAL Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai Port

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
50 Pieces Per Day

Delivery Time
1 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
As Per Standard Packing

Main Export Market(s)
Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America, South America

Main Domestic Market
All India

DN80 Forbes Marshall Cast Steel Piston valve Class 300 PSVAL About

Description

Forbes Marshall Piston Valves, PSVAL, provide perfect tightness and durable stability on different media such as steam, superheated steam, heat transfer fluid, water and compressed air.

Feature:

480 to 600 % higher sealing area.
Class VI bubble tight shut off: burnished piston sealing.
Zero gland leakage, Soft seated Sealing Perfect interface fit, Interchangeable parts
Protection of wetted parts: In open and closed condition, piston remains enclosed in sealing rings and is hence protected from erosive or corrosive material.

Benefit:

Offers Class VI bubble tight shutoff with zero leakage.
Smooth operating eliminates changes of water hammering in the line.
Ease of maintenance as critical components can be replaced without removal of valve from line.
Valve seating on the sides eliminates the possibility of wire drawing effect.
Low cost of operation, maintenance and repairs.
