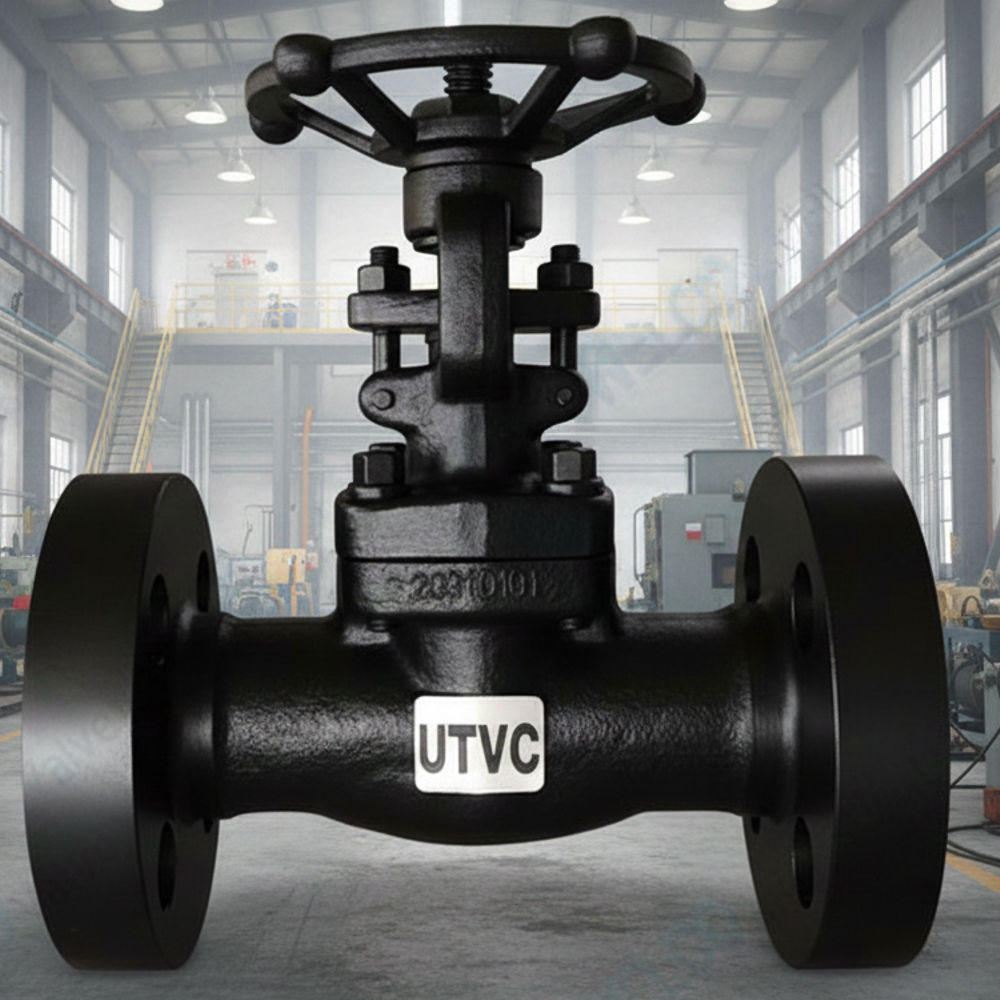

Forged Steel Globe Valves Class 1500 Flanged End

This Globe Valve Class 2500 is designed in order to control the flow of fluids Basically it is a mechanical tool that is fixed in the pipeline to ensure the unidirectional flow of fluids In many conditions the flow starts to reverse in direction and this can cause a severe malfunction in the fluid processing To avoid the condition our check valve is mostly preferred over other similar products present in the market Besides Globe Valve Class 2500 is sure to function for the prolonged duration without requiring any maintenance for it is made of the best quality material in our advanced production premises

UTVC make forged Carbon Steel High Pressure Globe valve OSY rising stem T type welded bonnet Class 1500 2500  3000 Spl Globe  Regulating Valves

         Spring action yoke arms compensate for effect of temperature changes assuring positive seating

         Heat treated stainless steel stem is corrosion and galling resistant suitable for service over 1000F Stake Locked Disc Nut  Positive locking prevents unscrewing

         Disc pad H25 Alloy prevents stem galling No damage from acid washing

         Rugged integral hard facing Stellite or equal allows repeated refinishing

         Long life high tensile aluminium bronze bushing

         Rugged ball joint flange no gland misalignment

         Packing gland is stainless steel split for easy removal during repacking

         Deep stuffing box Packing is corrosion inhibited preventing stem pitting

         Body and bonnet have a full penetration weld without crevices preventing corrosion and providing a unitary construction No weld cutting required for servicing

         Body cavity has ample clearance between body and disc allowing adequate flow passage preventing side thrust and reducing wear on stem guide

Materials

CARBON STEEL ALLOY STEEL Body A105 A182 F22 2 Bonnet A105 A182 F22 3 Disc Seat Stem13 Cr SS Stellited Hand wheel  Malleable iron Gland Packing Graphoil  Graphited  Asbestos Forged Steel Valves

Applicable Standard

Design Standard API 602 BS5352

Face to Face ASME B1610

End Connection Butt Weld Socket weld  ASME B1625 B1611

Inspection and Test API 598BS6755

Products Range

Size 12 To 2

Class ANSI 1500 2500 3000

Note

v  Model numbers along with speciality codes are designed to cover essential features When ordering please refer model numbers with speciality codes to preclude misunderstanding of your requirements However a detailed description for SPECIALS must always accompany order

v  Construction Material and Dimensions specified are indicative and are subject to change without prior intimation in view of the constant design improvements being incorporated
