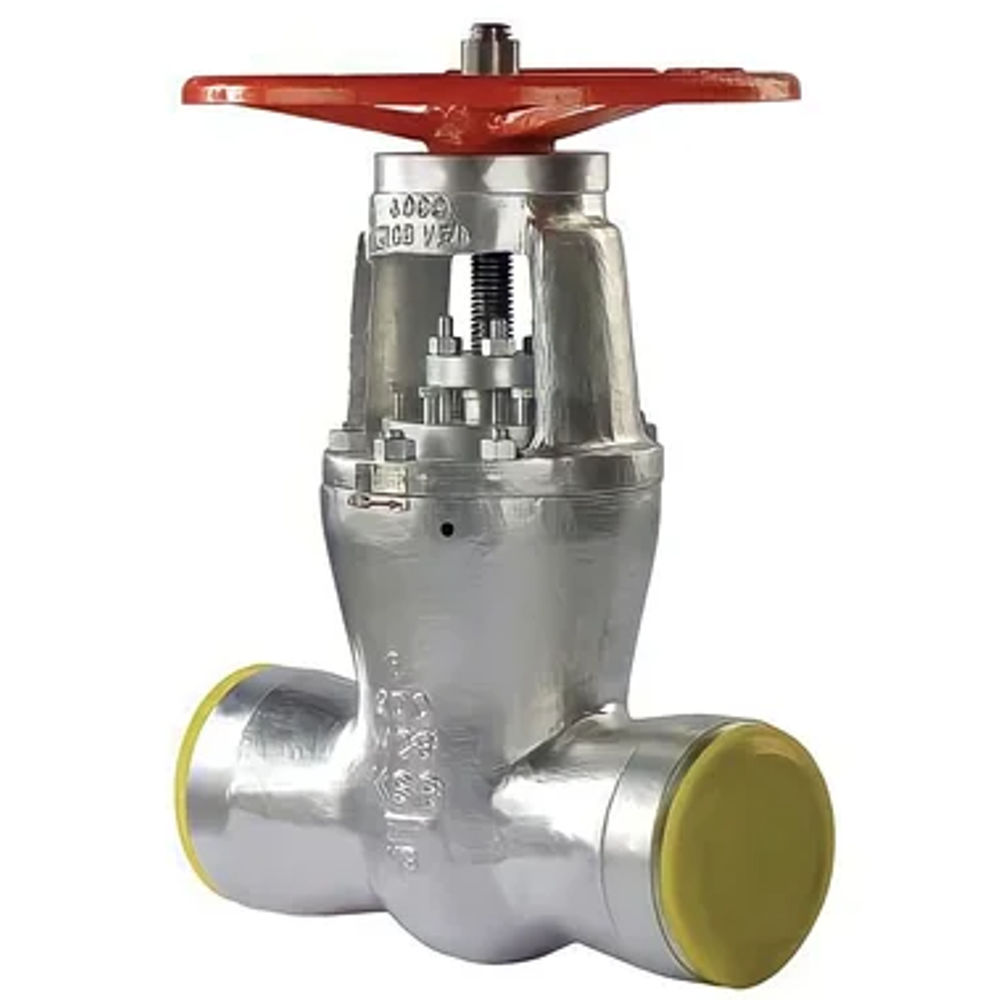

KSB Make Pressure Seal Bonnet Gate Valves Class 900

KSB Make Pressure Seal Bonnet Gate Valves Class 900 Specification

Material
WCB, WC6, WC9, C12A

Connection Type
Butt Weld End

Usage
Industrial Uses

Application
Industrial Uses

Type
Pressure Seal Bonnet Gate Valves

Size
2 inch to 42 Inch

Height
50 Centimeter (cm)

Product Type
Pressure Seal Bonnet Gate Valves

Media
Water, Oil, Gas, Base, Acid

Weight
100 Kilograms (kg)

Port Size
2 inch to 42 Inch

Length
50 Millimeter (mm)

Width
50 Millimeter (mm)

KSB Make Pressure Seal Bonnet Gate Valves Class 900 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai Port

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
20 Pieces Per Week

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Western Europe, Middle East, Africa, Asia, Australia, Central America, North America, South America, Eastern Europe

Main Domestic Market
All India

About KSB Make Pressure Seal Bonnet Gate Valves Class 900

The KSB Gate Valve SICCA 900-2500 Type GTC is specifically made for high-pressure and high-temperature industrial applications where safe and safe shutdown is critical. Designed to global standards, this forged steel gate valve ensures zero leakage, minimal pressure drop, and exceptional strength in given service conditions such as steam lines, boiler feed systems, and thermal power plants.

With its pressure seal bonnet design and OS&Y configuration, this valve offers field-proven safety and low-maintenance operation, even in continuous high-load systems.

Product Specifications

Specification	Details
Type:	Gate Valve (OS&Y Outside Screw & Yoke)
Pressure Rating:	ASME Class 900 / 1500 / 2500
Size Range:	50 mm to 600 mm (2" to 24")
Body Material Options:	ASTM A105, A182 F22, A182 F91
Wedge Types:	Solid, Flexible, Split
Bonnet Type:	Pressure Seal
End Connections:	Butt Weld Ends ASME B16.25 Flanged Ends B16.5 (on request)
Face-to-Face:	ASME B16.10
Trim Options:	API Trim Nos. 1, 5, 8, 10, 12
Design Standards:	API 600 / BS 1414
Testing Standards:	API 598 / BS 6755
