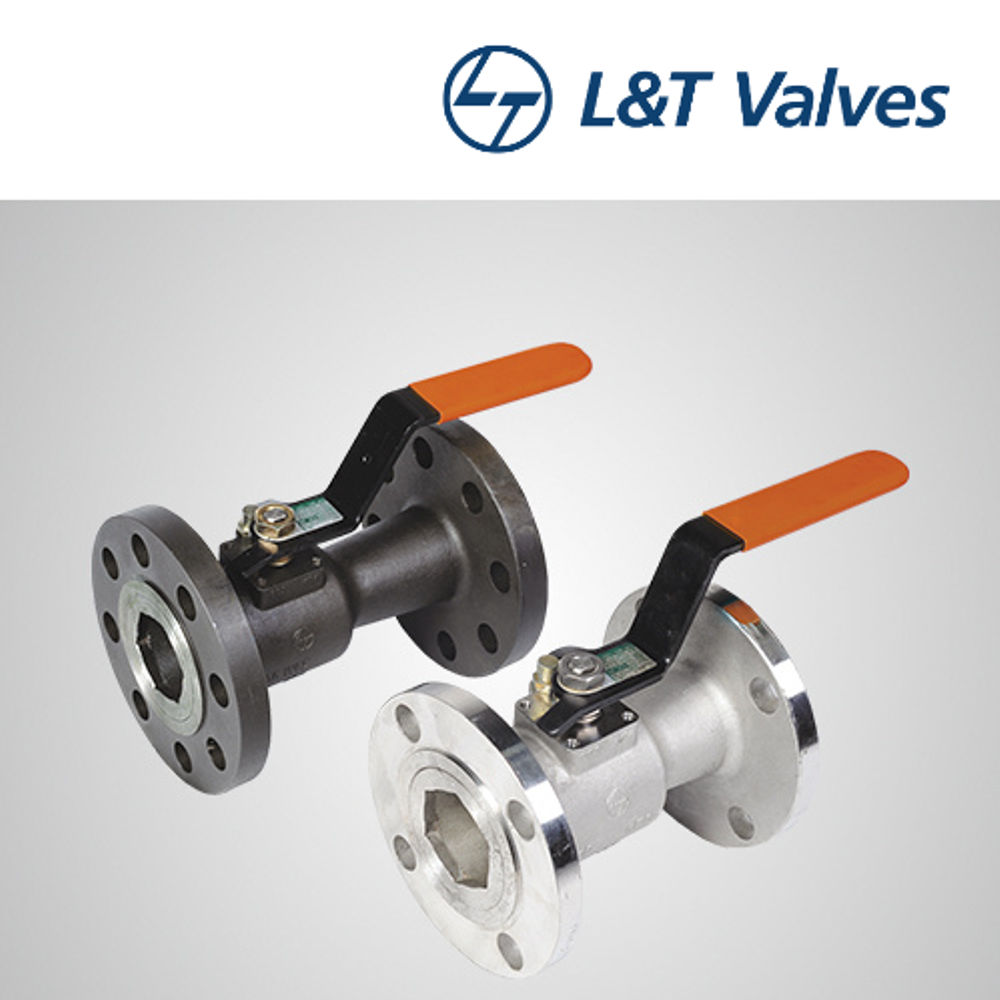

L&T SS316 Ball valve Single Piece Design Class 150 L1RF1S

L&T SS316 Ball valve Single Piece Design Class 150 L1RF1S Specification

Connection Type
Flanged end or Welded

Material
WCB, CF8, CF8M

Valve Size
15 mm to 300 mm

Application
Industrial Uses

Usage
Industrial Uses

Size
15 mm to 300 mm

Height
50 Centimeter (cm)

Media
Gas, Base, Water, Oil, Acid

Product Type
Ball valve Single Piece Design

Weight
20 Kilograms (kg)

Port Size
15 mm to 300 mm

Width
50 Centimeter (cm)

Length
50 Centimeter (cm)

L&T SS316 Ball valve Single Piece Design Class 150 L1RF1S Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai Port

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
20 Pieces Per Day

Delivery Time
1 Days

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About L&T SS316 Ball valve Single Piece Design Class 150 L1RF1S

Floating Ball Valves

Size	" to 8" (8 mm to 200 mm)
ASME Class	Class 150 to 2500
Design Standard	ISO 17292, API 608, API 6D

L&T Valves manufactures a versatile range of Process Ball Valves in single, two and three piece constructions. The valves are available in full-bore and regular-bore designs, in a variety of end connections and materials to suit customer requirements.

The valves are of floating-ball design where the ball moves towards the downstream seat, under pressure, to effect a tight seal.

Salient Features:

Fire-safe to ISO 10497 and API 607
Mirror-finished solid stainless ball
Fine-grained PTFE seats
Cavity Pressure Relief mechanism
Blowout-proof stem
High integrity stem sealing Belleville springs compensate for wear and thermal expansions
Antistatic feature
Actuator-mounting flange conforms to ISO 5211
SIL3 Safety Integrity Level for Automated Valves
