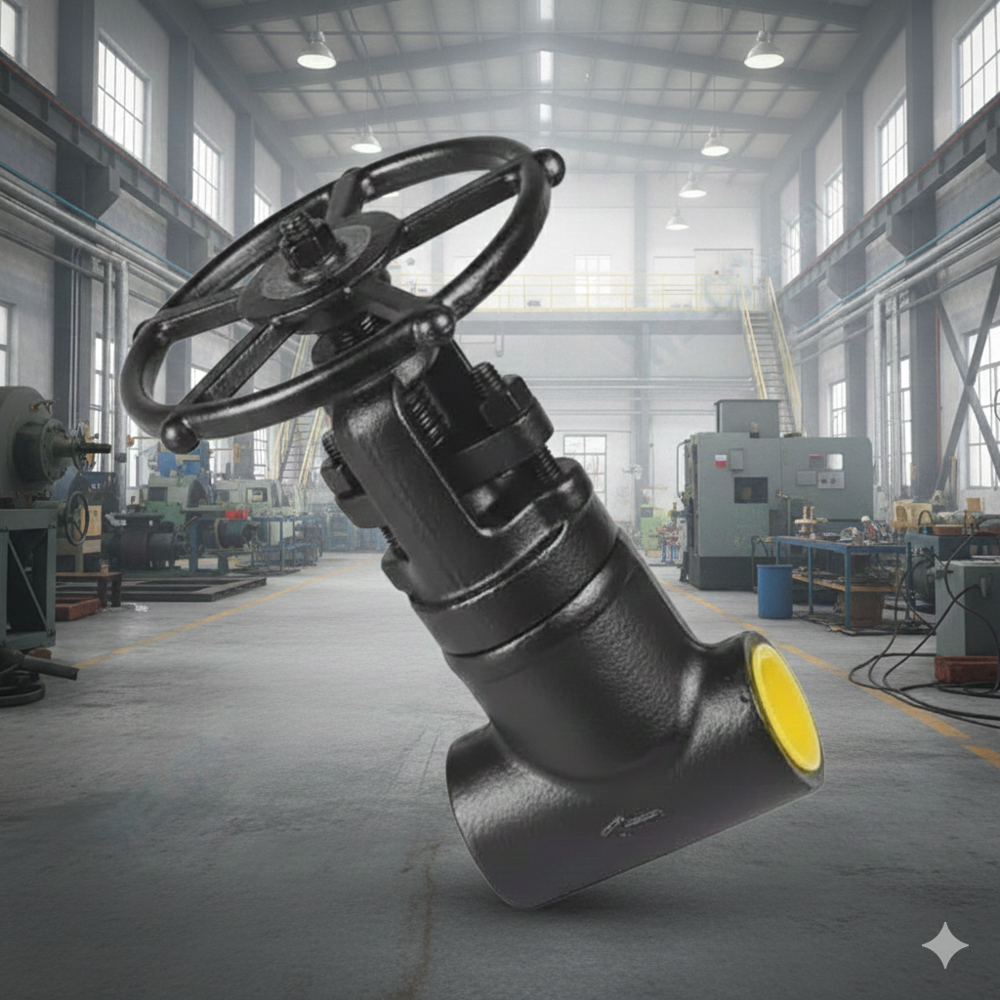

Forged Steel Y Type Globe Valve Class 2500 Socket Weld

About Forged Steel Y Type Globe Valve Class 2500 Socket Weld

Valve Features:

These special blow off valves are available in bolted bonnet angle and streamlined flow 45 inclined designs for Class 600 and 1500 primary service and in bonnet less angle and inclined designs for Class 2500. Stellite 6 seats and fully-guided Stellite 6 discs resist the excessive corrosion and erosion effects aggravated by grid and boiler scale particles and high temperature changes. Designed for quick and easy maintenance one step removal of all working parts including packing.

All pressure containing parts within one body-bonnet forging no joints to leak or welds to cut for servicing.

Non rotating stem allows a non-spinning disc, ensures low torque and prevents torsional damage of the packing. Fully enclosed, lubricated stem drive system with needle bearings ensures low operating torque.

Solid Stellite disc, seat ring and backseat provide excellent long service life even in severe services.

Backseat bevel on the stem, not on the disc, satisfies both API-600 and API-602 specifications.

Specification

         Y-type Design

         Bolted Bonnet, O.S.&Y. Type

         Optional: Weld Bonnet

         Trim: API600 trim no. upon customer's requirement

         End Connections : Threaded(NPT, BSPT, DIN), Socket Weld

         Manufacture and Design : API602 / ANSI B16.34

         Hydrostatic Test : Shell 3000 PSI / Seat 2200 PSI

         Air Test : 80 - 100 PSI

         A compact but extremely sturdy design for high pressure-temperature service

         Inspection and Test: API 598

         Valve Material : ASTM A105, A182 F304/ F316/ F11/ F22/ F304L/ F316L

         Valve Rating : 2000 C.W.P.

         Port Size : Full Port

         Size Range : 1/2" - 2"

         Rating: 800#,1500#,2500# 3000#

         Working Temperature : (A105) -20F ~ 800F, (S.S.) -20F ~ 950F

         Service Application: Hydraulic, Steam, Chemical, Oil/ Gas, Power, Petrochemical, Marine, Mining, Construction.
