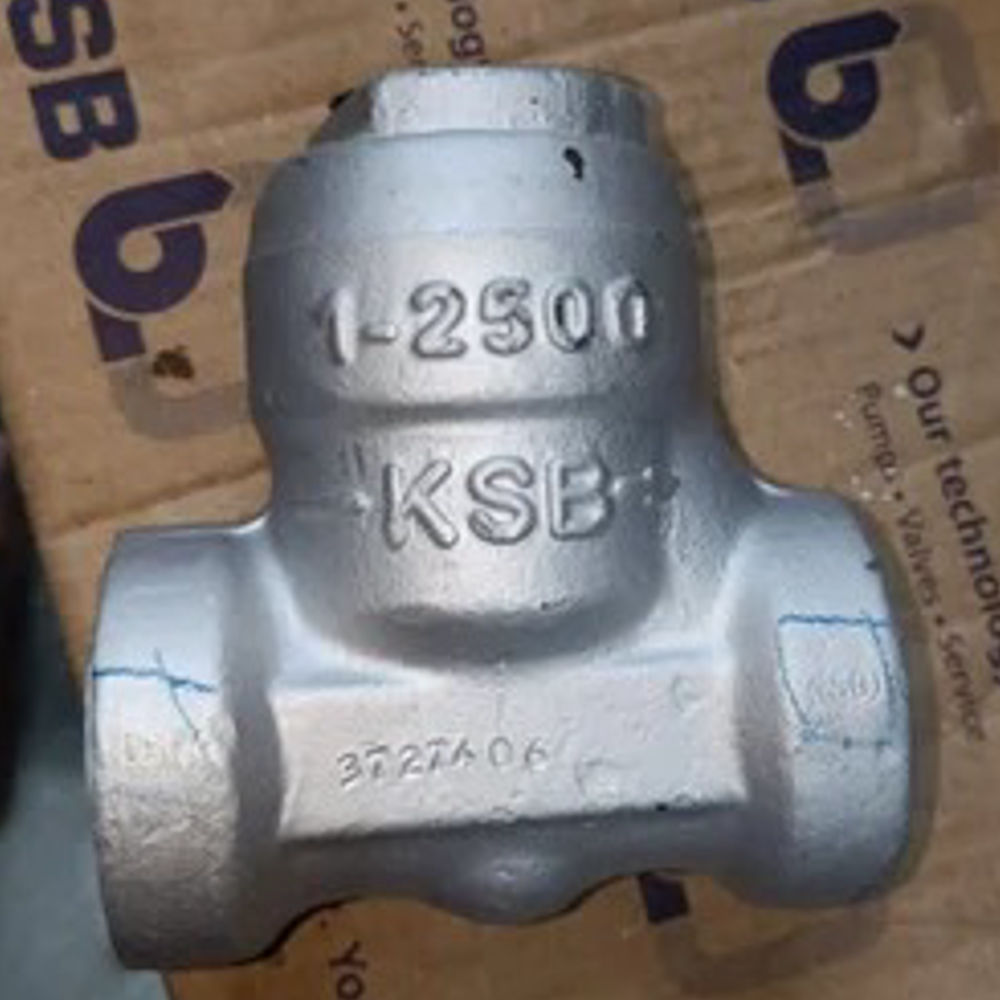

KSB Make Forged Steel Check Valves Class 2500 Socket Weld

About KSB Make Forged Steel Check Valves Class 2500 Socket Weld

The KSB Check Valve 800-4500 PCF is an accurately designed, check steel valve made to offer hard functionality in high-pressure and high-temperature applications. Whether it's thermal power plants, refineries, or process industries, this check valve ensures safe one-way flow and safeguards critical equipment by preventing low water.

Built with check carbon or alloy steel and solid in structure, this valve provides ideal strength, tight shutdown, and excellent performance under demanding conditions.

Product Specifications

Specification	Details
Valve Type:	Forged Check Valve
Pressure Class:	ASME 800 / 1500 / 2500
Size Range:	15 mm to 50 mm (" to 2")
Body Materials:	ASTM A105, A182 F11, F22, F91
Design Standard:	BS 5352 / API 602
Bonnet Options:	Bolted Bonnet / Pressure Seal Bonnet
End Connections:	Socket Weld ASME B16.11 Screwed Ends ASME B1.20.1 (NPT) Butt Weld Ends ASME B16.25
Face-to-Face:	ASME B16.10 (Short Pattern)
Testing Standards:	API 598 / BS 6755
Trim Options:	Trim Nos. 5, 8, 10, 12
