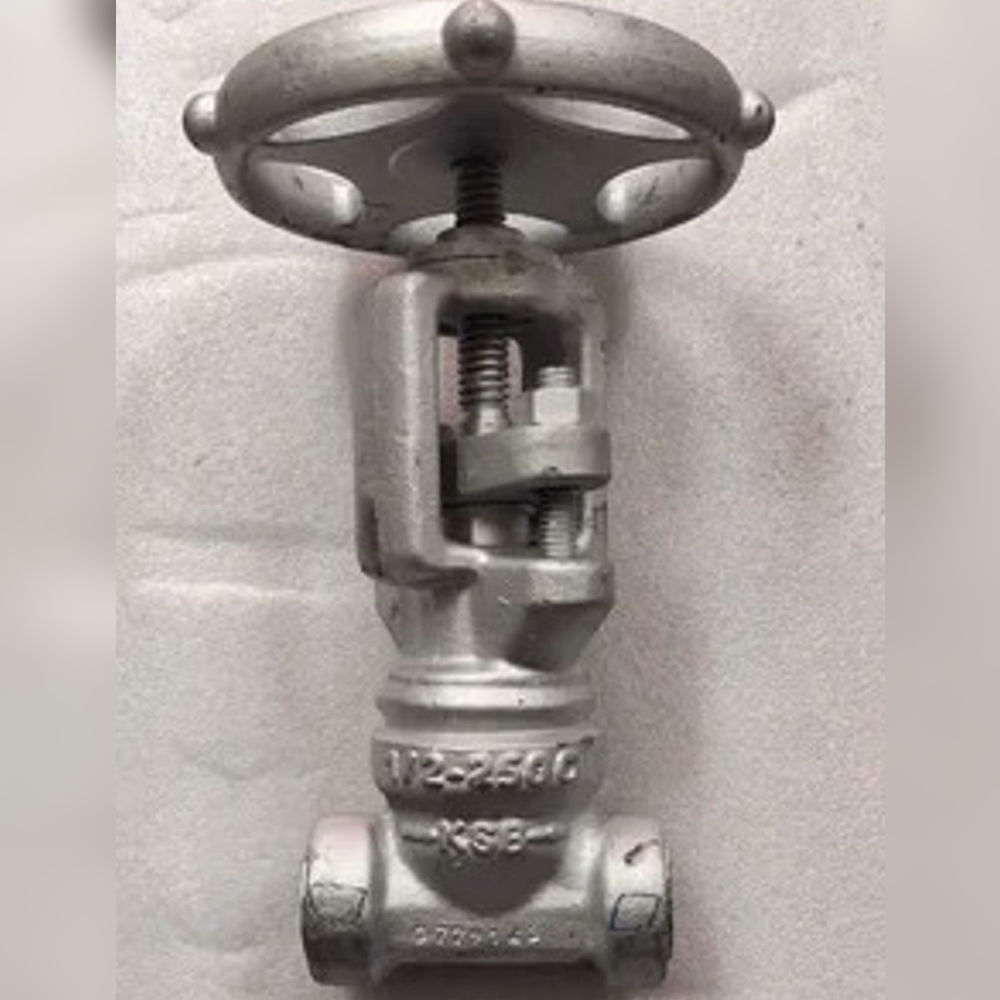

KSB Make Forged Steel Gate Valves Class 2500 Socket Weld

KSB Make Forged Steel Gate Valves Class 2500 Socket Weld Specification

Connection Type
Socket Weld or Screwed end

Material
A105, F22, F11, LF2

Application
Industrial Uses

Usage
Industrial Uses

Type
Forged Steel Gate Valves

Size
15 mm to 50 mm

Height
20 Centimeter (cm)

Media
Gas, Base, Oil, Water, Acid

Product Type
Forged Steel Gate Valves

Weight
20 Kilograms (kg)

Port Size
15 mm to 50 mm

Length
10 Centimeter (cm)

Width
10 Centimeter (cm)

KSB Make Forged Steel Gate Valves Class 2500 Socket Weld Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai Port

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
50 Pieces Per Week

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Australia, Central America, South America, North America, Eastern Europe, Asia

Main Domestic Market
All India

About KSB Make Forged Steel Gate Valves Class 2500 Socket Weld

The KSB Gate Valve 8002500 Type GTF is an accurately designed, check steel valve made to offer hard functionality in high-pressure and high-temperature applications. Whether it's thermal power plants, refineries, or process industries, this check valve ensures safe one-way flow and safeguards critical equipment by preventing low water.

Built with check carbon or alloy steel and solid in structure, this valve provides ideal strength, tight shutdown, and excellent performance under demanding conditions.

Product Specifications

Specification	Details
Valve Type:	Forged Gate Valve
Pressure Class:	ASME 800 / 1500 / 2500
Size Range:	15 mm to 50 mm (" to 2")
Body Materials:	ASTM A105, A182 F11, F22, F91
Design Standard:	BS 5352 / API 602
Bonnet Options:	Bolted Bonnet / Pressure Seal Bonnet
End Connections:	Socket Weld ASME B16.11 Screwed Ends ASME B1.20.1 (NPT) Butt Weld Ends ASME B16.25
Face-to-Face:	ASME B16.10 (Short Pattern)
Testing Standards:	API 598 / BS 6755
Trim Options:	Trim Nos. 5, 8, 10, 12
