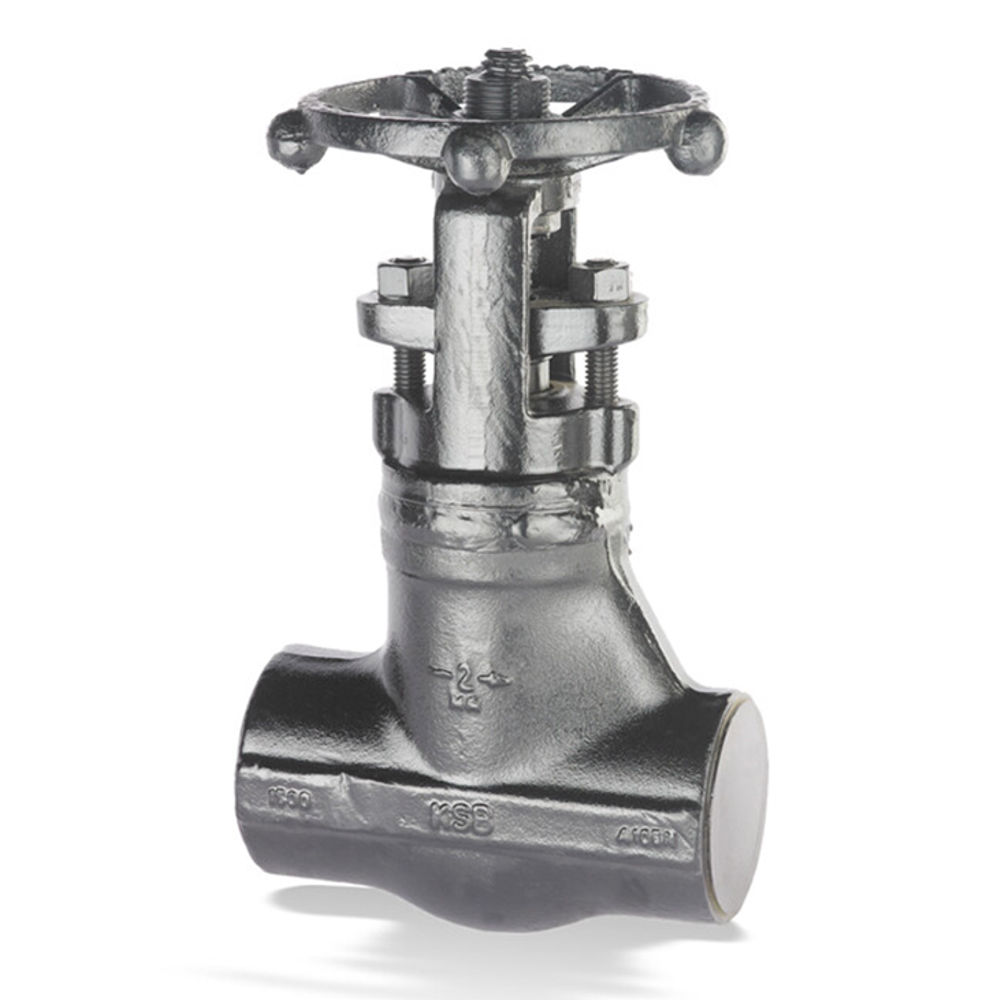

KSB Make Forged Steel Globe Valves Class 1500 Socket Weld

About KSB Make Forged Steel Globe Valves Class 1500 Socket Weld

The KSB Globe Valve 800-4500 Type GLF is a high-performance check valve designed for accurate choking and flow regulation in high-pressure, high-temperature environments. Made to meet the correct demands of industries such as power generation, oil & gas, and chemical processing, this globe valve offers exceptional strength, tight shutoff, and effective set control.

Made from top-grade check carbon and alloy steels, this valve is ideal for steam, moisture, and aggressive fluid services, ensuring long-term safety even in the highest operating conditions.

Product Specifications

Specification	Details
Valve Type:	Forged Globe Valve
Pressure Class:	ASME 800 / 1500 / 2500 / 4500
Size Range:	15 mm to 50 mm (" to 2")
Body Material Options:	ASTM A105, A182 F11, F22, F91
Design Standard:	BS 5352 / API 602
Bonnet Types:	Bolted Bonnet / Pressure Seal Bonnet
End Connections:	Socket Weld ASME B16.11 Screwed Ends ASME B1.20.1 (NPT) Butt Weld Ends ASME B16.25
Face-to-Face Dimensions:	ASME B16.10 (Short Pattern)
Test Standards:	API 598 / BS 6755
Trim Variants:	Trim Nos. 5, 8, 10, 12
